CHIEFTEC skříň Pro Cube Mini CN-01B-OP, ITX, Black, bez zdroje
Popis a parametre
CHIEFTEC skříň Pro Cube Mini CN-01B-OP, ITX, Black, bez zdroje
OVERVIEW

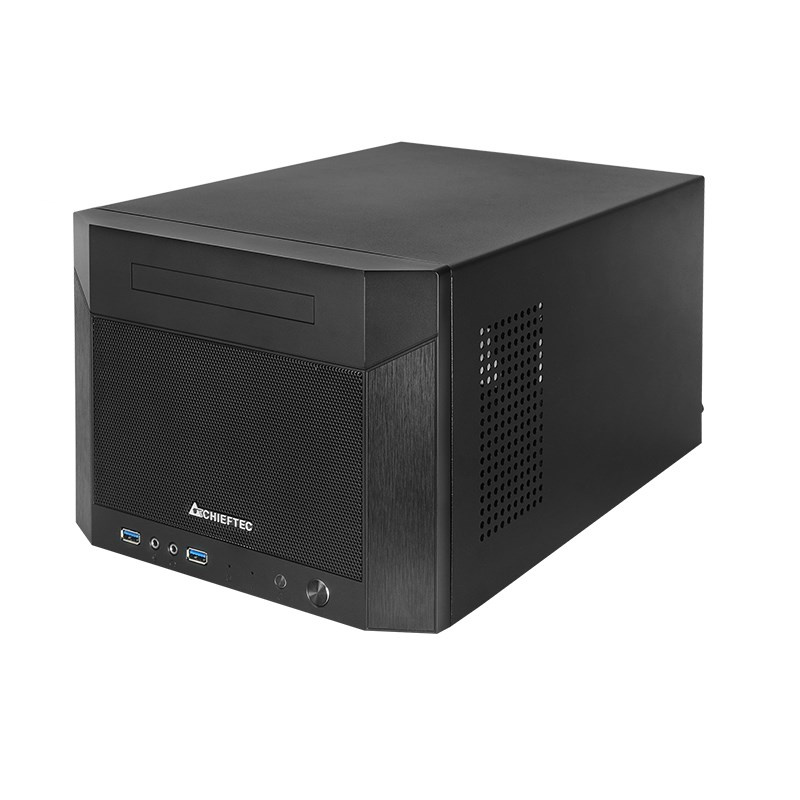

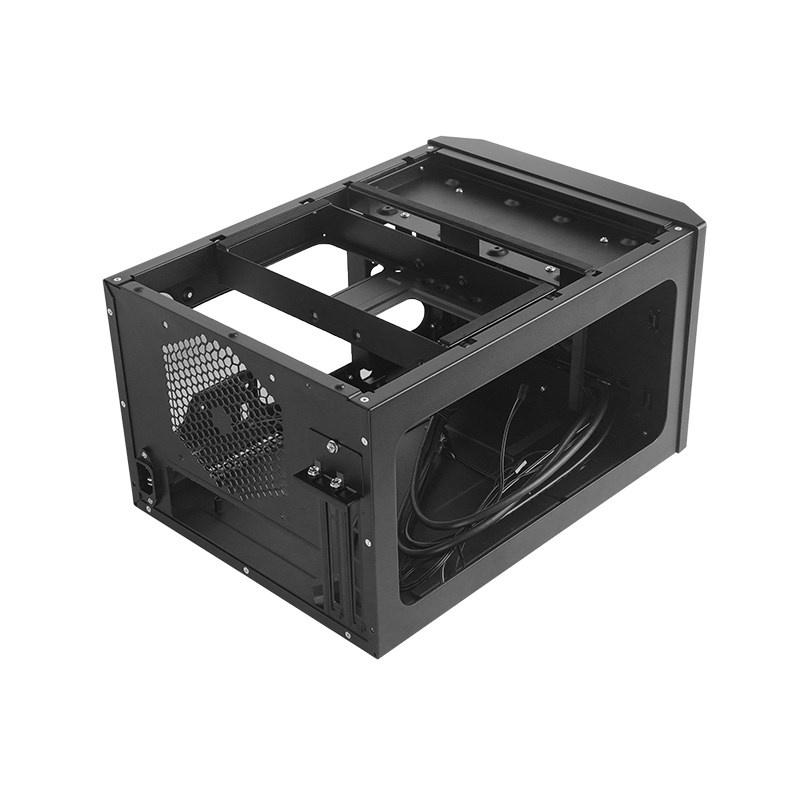

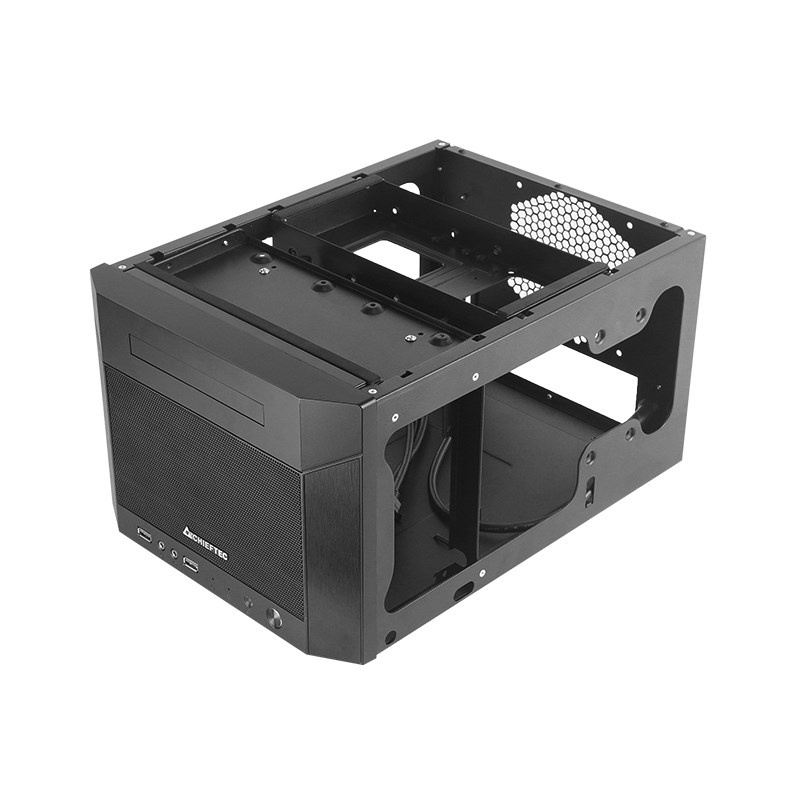

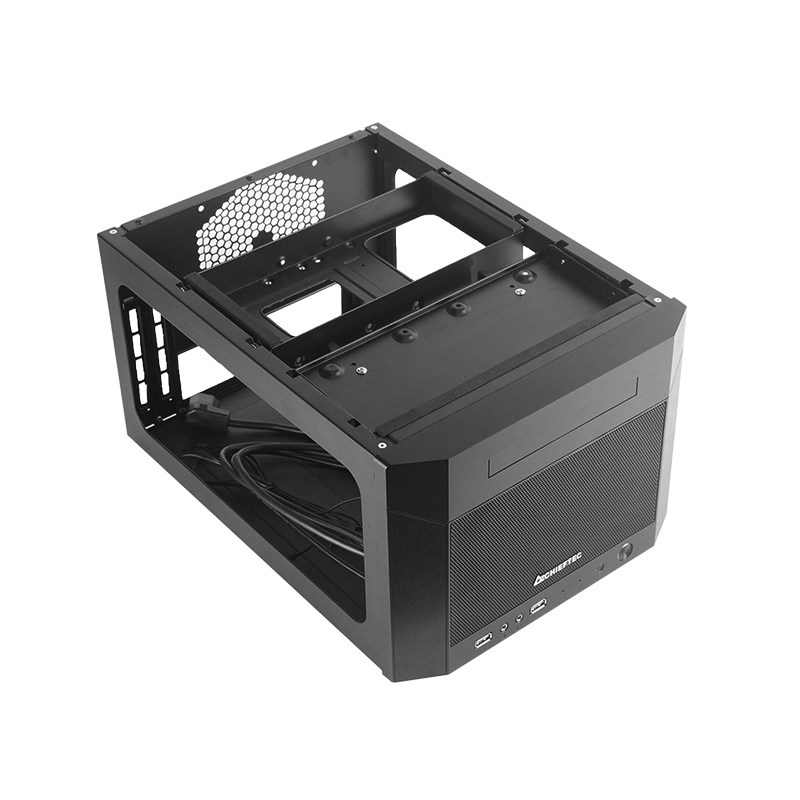

The CHIEFTEC ProCube Mini serves as a compact, multifunctional cube case in ITX form factor, while ensuring high flexibility for the components used.
Compatible with ATX PSU’s, Dual Slot GPU’s up to 320mm in length, 3x 3.5” HDD, 2x 2.5” SSDs, and a slimline ODD, the ProCube is the prime example of highly functional design in compact dimensions.

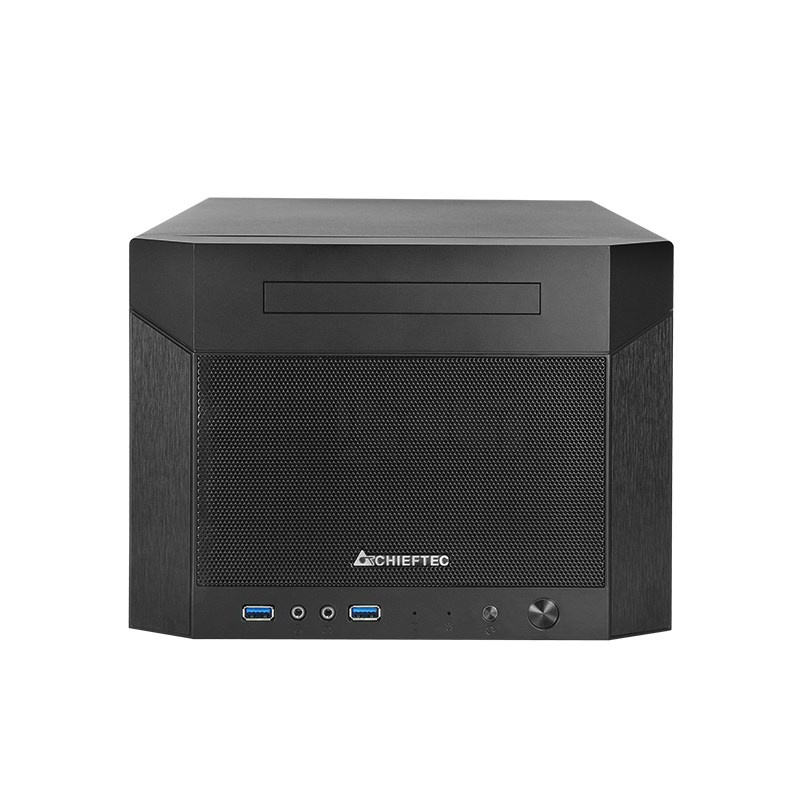

With a front panel design that elegantly combines mesh and brushed aluminum, the ProCube Mini will blend in seamlessly in many environments from the living room to the home office and any corporate working environment.
SPECIFICATION:
| Model | CN-01B-OP |
| EAN code | 0753263077837 |
| Color | Black |
| Material | 0.8mm SPCC |
| Motherboard support | Mini ITX |
| Dimension (DxWxH) | 356mm x 260mm x 195mm |
| Weight (without/with package) | 3.79 kg / 4.4 kg |

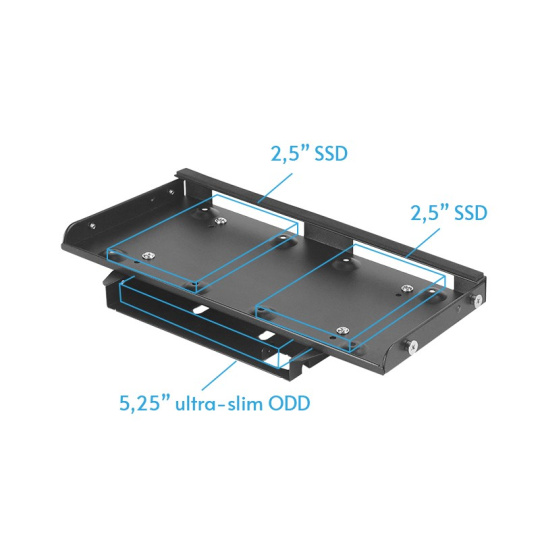

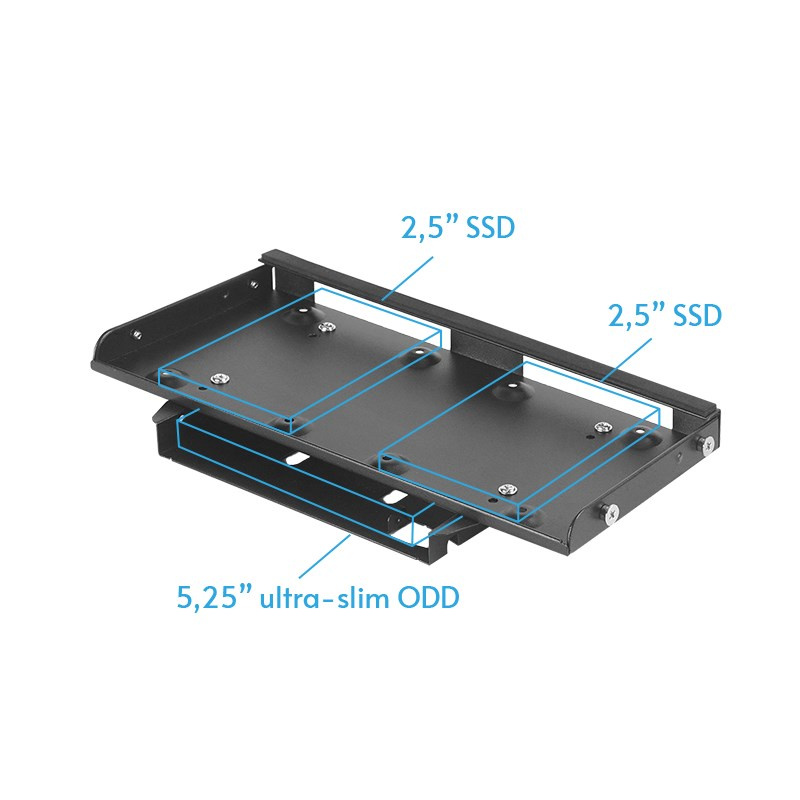

| Drive bay external | 1x 5,25“ slim ODD |

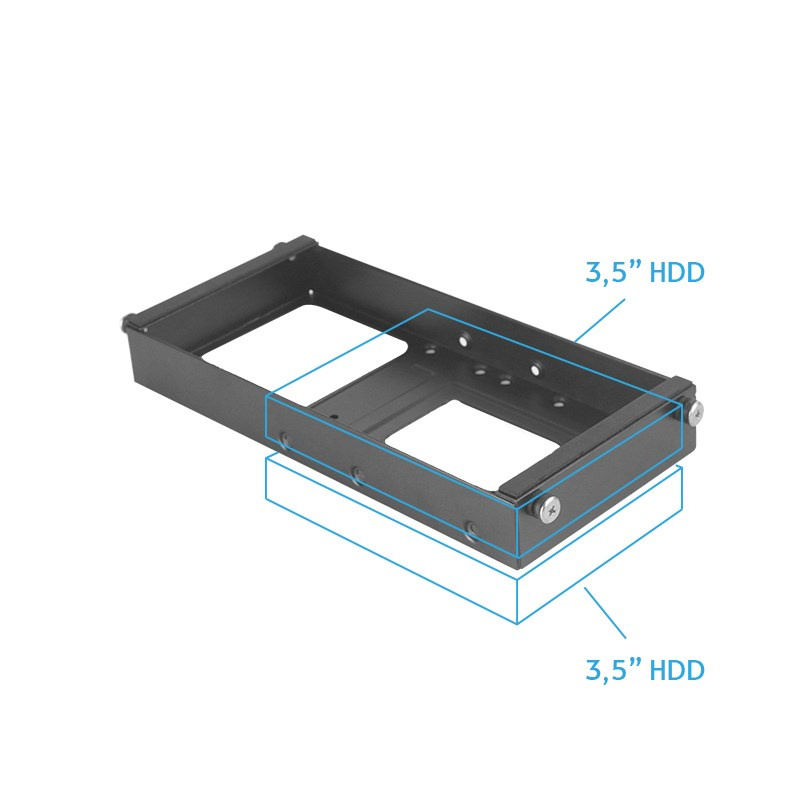

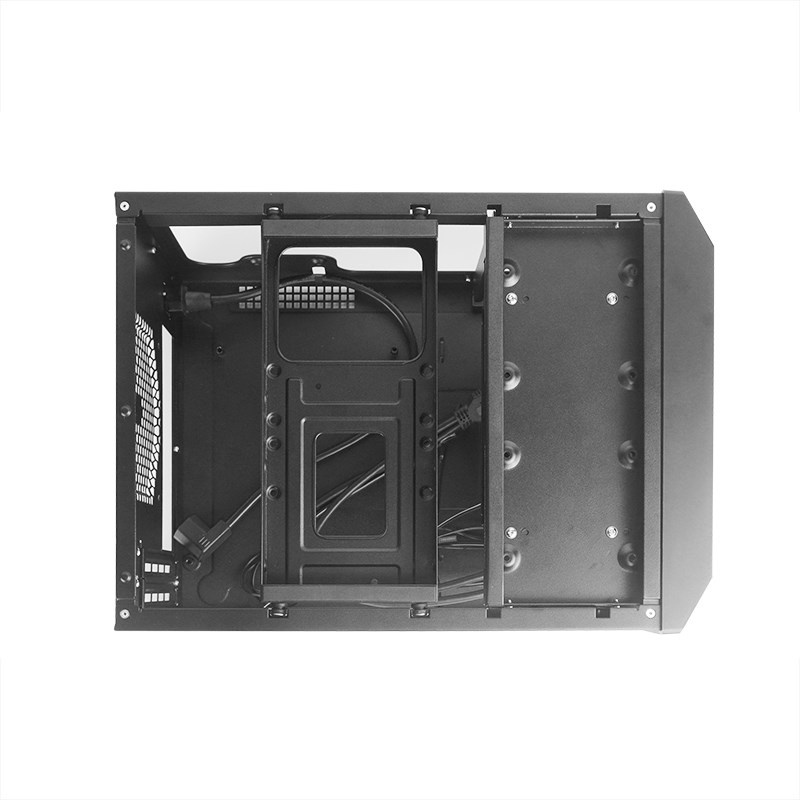

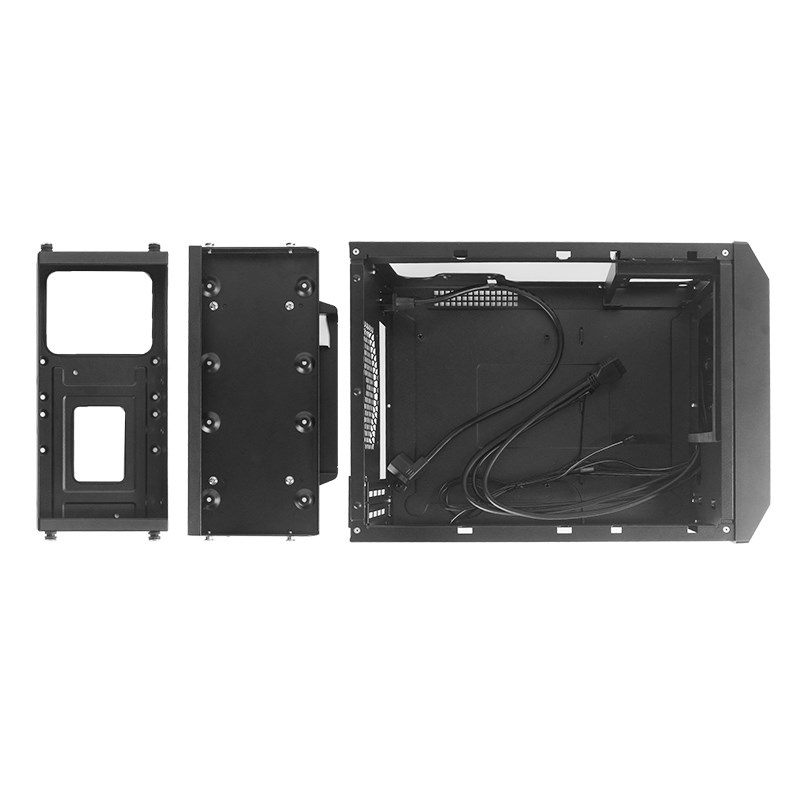

| Drive bay internal | 3x 3.5” and 2x 2.5”" |

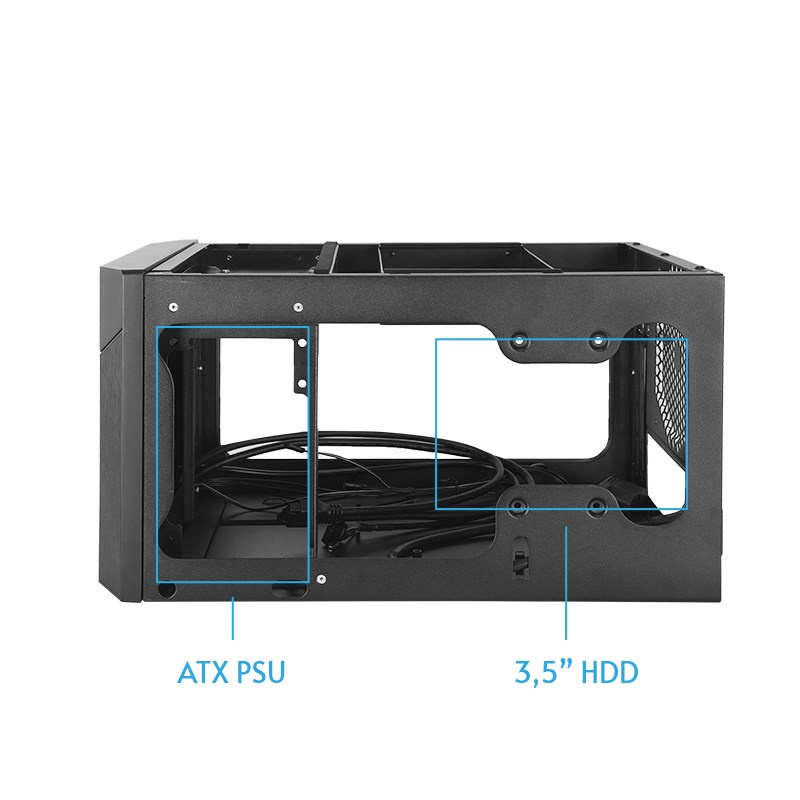

| Power supply | ATX PSU (optional, 140mm - 200mm) |
| Front I/O | 2x USB3.2 Gen 1, Audio-out (AZALIA / HD-Audio), Mic-In, Reset |

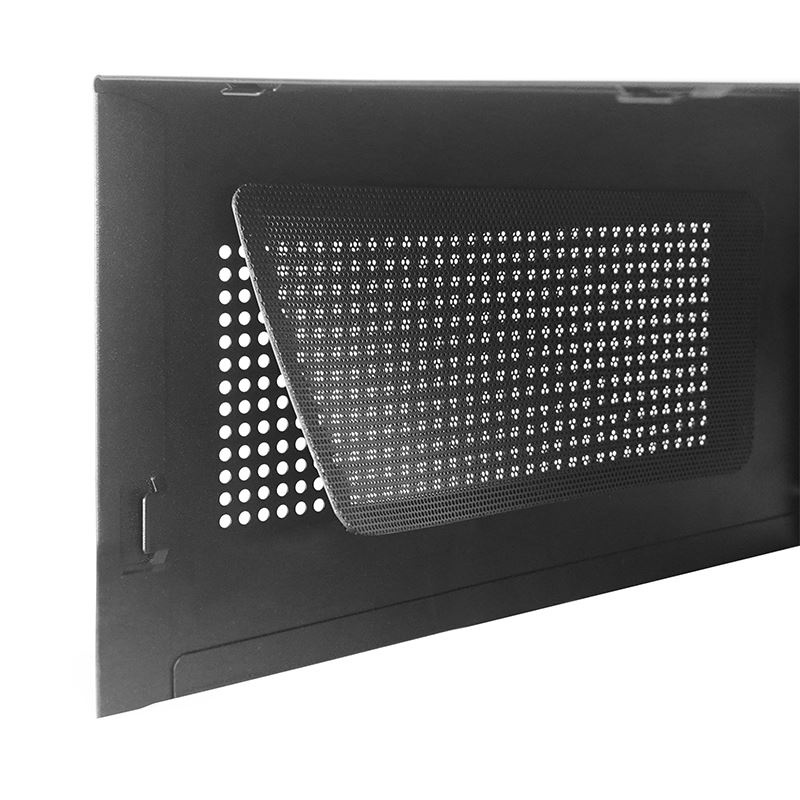

| Scope of delivery | Set of screws, magnetic dust filter on side |
| Expansion slots | 2 |

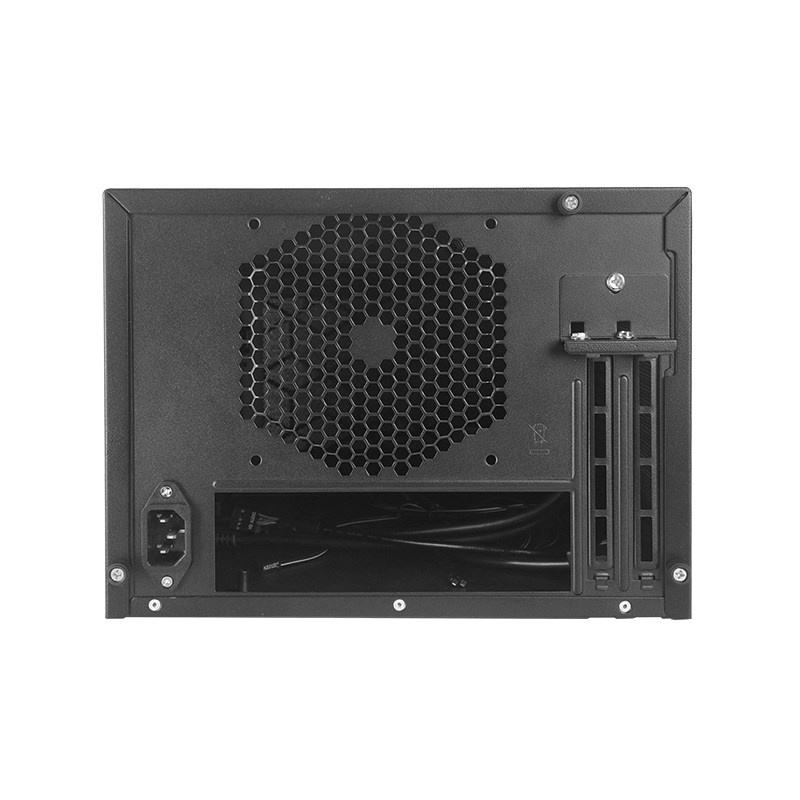

| Cooling Compatibility | Rear: 1x 120mm fan and radiator |
| CPU cooler height (max.) | Up to 145mm (depending on 3.5” HDD installation) |
| VGA card length (max.) | 230mm - 320mm (depending on PSU length) |
| Warranty | 24 Months |
.
ParametrePridať do porovnania
Prevedenie skrine
Mini ITX
Farba skrine
Čierna
Počet pozícií 5.25"
1
Počet pozícií 3.5" (HDD)
3
Počet interných pozícií 2.5"
2
Vybavenie PC skrinky
Predný Audio panel
Vybavenie PC skrinky
Predný USB panel
Bočnice
Plná
Podsvícení
bez podsvícení
Integrovaný zdroj
Ne
