TP-Link EAP603-Outdoor venkovní OMADA WiFi6 AP (AX1800,2,4GHz/5GHz,1xGbELAN,1xPoE-in)
Popis a parametre
TP-Link EAP603-Outdoor venkovní OMADA WiFi6 AP (AX1800,2,4GHz/5GHz,1xGbELAN,1xPoE-in)
TP-Link EAP603-Outdoor
AX1800 vnitřní/venkovní přístupový bod s Wi-Fi 6
- Plynulé rychlosti Wi-Fi 6 až 1,8 Gb/s – 574 Mb/s v pásmu 2,4 GHz a 1201 Mb/s v pásmu 5 GHz.†
- Všesměrové dvoupásmové pokrytí – Dosah až 300 m (984 ft) pro dlouhý dosah pokrytí.*
- Napájení PoE+ – Podpora 802.3at PoE i pasivního PoE (adaptér je součástí balení).
- Ideální pro venkovní prostředí – Krytí IP65, ochrana proti přepětí 6 kV a spolehlivý provozní rozsah od -40 °C do +70 °C.
- Snadná a rychlá instalace – Montáž na zeď nebo stožár; Omada SDN umožňuje nastavení jedním kliknutím.
- Pokročilé funkce – Omada Mesh, plynulý roaming a centralizovaná cloudová správa.§
Stránky produktu: https://www.omadanetworks.com/cz/business-networking/omada-wifi-outdoor/eap603-outdoor
Technické specifikace
| HARDWARE FEATURES | |

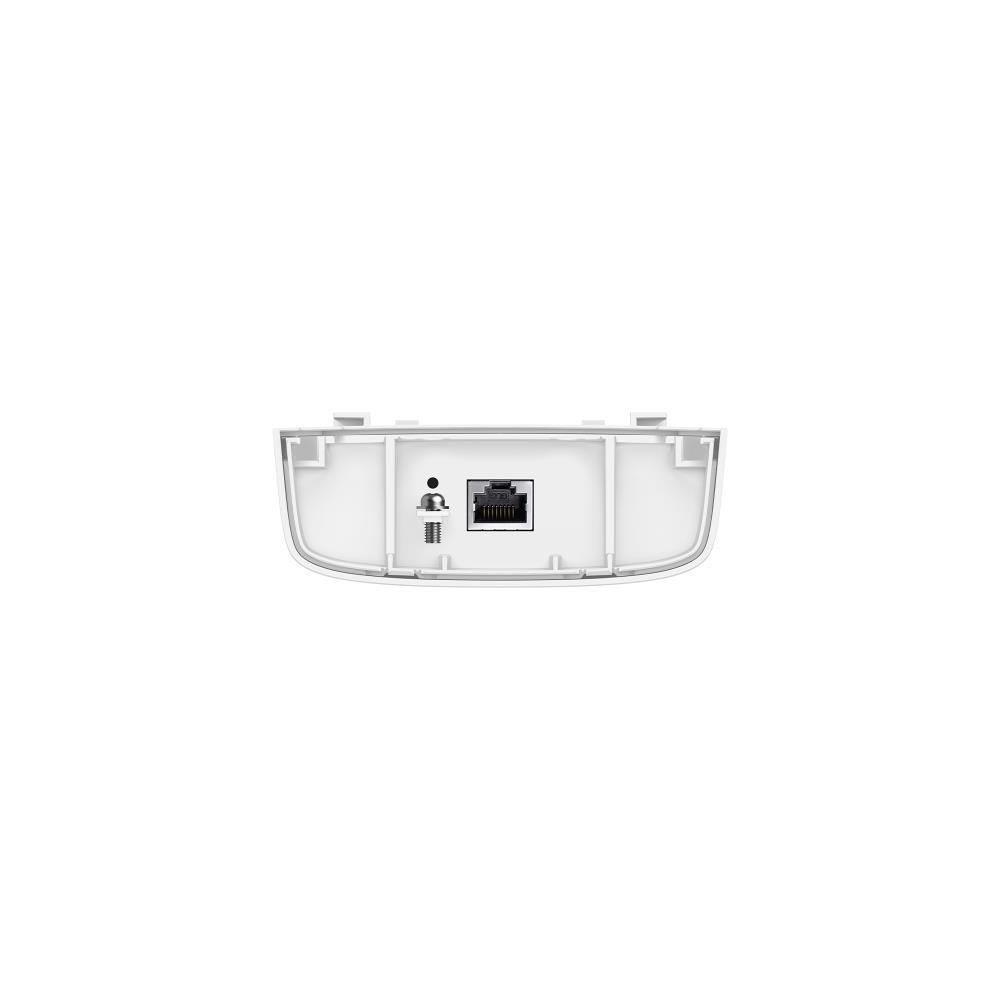

| Interface | • 1× 10M/100M/1000Mbps Gigabit Ethernet Port (RJ45); PoE in • 1× Grounding Termina |
| Button | 1× Reset button: Press the button for longer than 5 seconds to make the device restore to factory settings. |
| Power Supply | • 802.3at PoE • 48V Passive PoE (PoE Adapter Included - For Dry Indoor Use Only) |
| Max. Power Consumption | • 802.3at (PoE+): 15.8w, 2.4GHz radio 2×2, 5GHz radio 2×2, wired link rate can be up to 1 Gbps, etc. • Idle mode: 4.8W(PoE) |
| Dimensions ( W x D x H ) | • Main Unit: 230 × 207.5 × 69.7 mm (9.06 × 8.17 × 2.74 in.) • Shipping Unit: 324 × 104 × 245 mm (12.76 × 4.09 × 9.65 in.) |
| Antenna | Wi-Fi • 2.4 GHz: 2 × 4 dBi (peak gain), external omnidirectional antennas • 5 GHz: 2 × 5 dBi (peak gain), external omnidirectional antennas *Note: The gains above are the single-antenna peak gains. IoT • Bluetooth: 1 × 4 dBi (peak gain), internal omnidirectional antennas |
| Bluetooth | Yes |
| Weatherproof Enclosure | IP66 for Wall Mount IP65 for Pole Mount |
| Mounting | • Pole Mount (Kits included) • Wall Mount (Kits included) |
| WIRELESS FEATURES | |
| Coverage | • 2.4 GHz: up to 2,150 ft (200 m) • 5 GHz: up to 3,200 ft (300 m) |
| Wireless Standards | 5 GHz: IEEE 802.11a/n/ac/ax 2.4 GHz: IEEE 802.11b/g/n/ax |
| Frequency | • 5 GHz • 2.4 GHz |
| Signal Rate | • 2.4 GHz: up to 573 Mbps • 5 GHz: up to 1201 Mbps *Note: Country-Specific Restriction Apply |
| Wireless Functions | • Maximum number of BSSIDs: 16 (8 on each band) • Maximum number of associated STAs: 250+ • Guest Network • ACS (Automatic Channel Selection) • Airtime Fairness • Band Steering • 802.11 Rate Control • Rogue AP Detection • URL Filtering • WLAN Optimization • Lock to AP • SSID/Client Rate Limit • Load Balance • Seamless Roaming (802.11k/v/r, Non-Stick Roaming, Ping-Pong Roaming Suppression, AI Roaming)§ • Multicast/Broadcast Management (Multicast-to-Unicast Conversion, ARP-to-Unicast Conversation, Multicast Filtering, Multicast/Broadcast Rate Limit) • QoS (Quality of Service) |
| Wireless Security | • ACL • MAC Filter • 802.1X Authentication • MAC-Based Authentication • WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise, Enhanced Open, and None • Radius Accounting • PPSK without Radius, PPSK with Radius (Generic Radius with bound MAC/EKMS/Generic Radius with unbound MAC) • Captive Portal: No Authentication, Simple Password, Hotspot (Voucher / Local User / SMS / RADIUS / Form Auth), RADIUS Server, External LDAP Server, External Portal Server, Pre-Authentication Access, and Authentication-Free Client • EAP Types: EAP-TLS, EAP-TTLS, EAP-PEAP, EAP-CHAP, EAP-SIM, EAP-AKA, EAP-GTC, EAP-FAST, EAP-PEAP, EAP-MD5, EAP-MSCHAPv2, PEAPv0, PEAPv1 |
| Transmission Power | Maximum transmit power: CE (ERIP) • 2.4 GHz: 20 dBm • 5 GHz: 23 dBm in U-NII-1, 23 dBm in U-NII-2A, 29 dBm in U-NII-2C, FCC (Conducted Power) • 2.4 GHz: 25 dBm • 5 GHz: 27 dBm in U-NII-1, 24 dBm in U-NII-2A, 24 dBm in U-NII-2C, 27 dBm in U-NII-3 Minimum transmit power CE (ERIP) • 2.4 GHz: 7 dBm • 5 GHz: 6 dBm in U-NII-1, 6 dBm in U-NII-2A, 6 dBm in U-NII-2C, 6 dBm in U-NII-3 FCC (Conducted Power) • 2.4 GHz: 4 dBm • 5 GHz: 4 dBm in U-NII-1, 4 dBm in U-NII-2A, 4 dBm in U-NII-2C, 4dBm in U-NII-3 Adjustable power increment: 1 dBm *Note: MIMO combined power, excluding antenna gains. The actual transmit power depends on local laws and regulations |
| Management Features | |
| Omada App | Yes |
| Restore & Backup | Yes |
| Firmware update via Web | Yes |
| NTP | Yes |
| Centralized Management | • Omada Hardware Controller • Omada Software Controller • Omada Central (Cloud-Based) • Omada App |
| Cloud Access | Yes. Require the use of an Omada controller. |
| Email Alerts | Yes |
| LED ON/OFF Control | Yes |
| Management MAC Access Control | Yes |
| SNMP | v1, v2c, v3 |
| SSH | Yes |
| Web-based Management | Yes |
| OTHERS | |
| Certification | CE, FCC, RoHS |
| Package Content | • EAP603-Outdoor • Passive PoE Adapter • Power Cord • Installation Guide • Mounting Kit • Waterproof Kit |
| Environment | • Operating Temperature: -30 °C–70 °C (-22 °F–158 °F); • Storage Temperature: -40 °C–70 °C (-40 °F–158 °F); • Operating Humidity: 10%–90% non-condensing; • Storage Humidity: 5%–90% non-condensing |
ParametrePridať do porovnania
Typ Wi-Fi aktívneho prvku
Acces Pointy, Bridge
Komunikačné pásmo
5 GHz
Komunikačné pásmo
2,4 GHz
Pripojenie externej antény
Nie
Podporované štandardy
802.11n
Podporované štandardy
802.11b/g
Podporované štandardy
802.11a
Podporované štandardy
802.11ac
Podporované štandardy
802.11b/g/n
Podporované štandardy
802.11a/n
USB port
Ne
Další vlastnosti
PoE (Power over ethernet)
Další vlastnosti
QoS (Quality of Service)
Další vlastnosti
Podpora Wi-Fi Mesh
Další vlastnosti
VLAN
Další vlastnosti
Management
Slot na SIM kartu
Ne
Počet portů LAN
1
Použití
Venkovní
Zabezpečení
WEP 64bit
Zabezpečení
WPA-PSK
Zabezpečení
WPA-Enterprise
Zabezpečení
WPA2-PSK
Zabezpečení
WPA2-Enterprise
Zabezpečení
WPA3
Typ antény
Integrovaná
Typy PoE
PoE - In
Počet portů LAN
1
TP-Link EAP603-Outdoor venkovní OMADA WiFi6 AP (AX1800,2,4GHz/5GHz,1xGbELAN,1xPoE-in)
