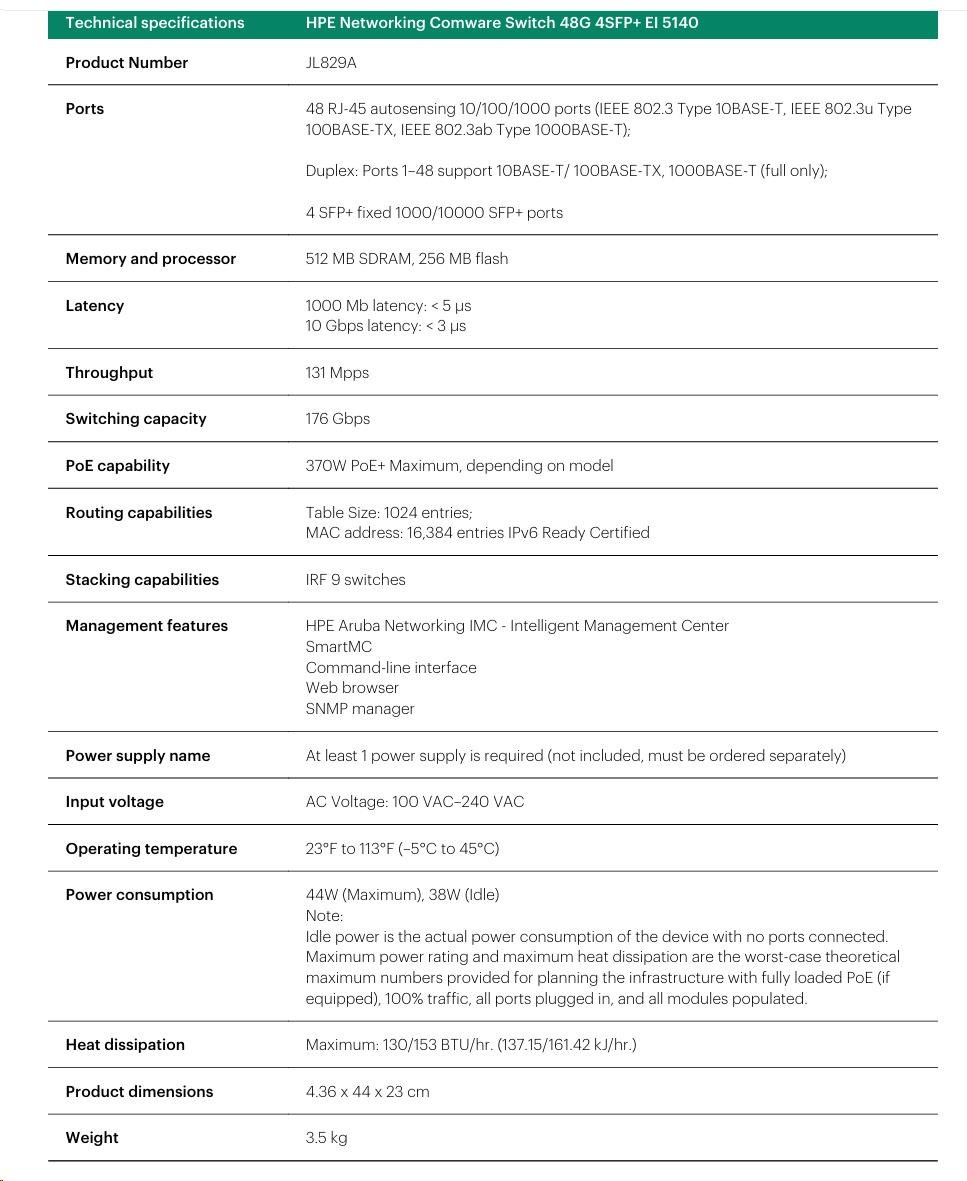

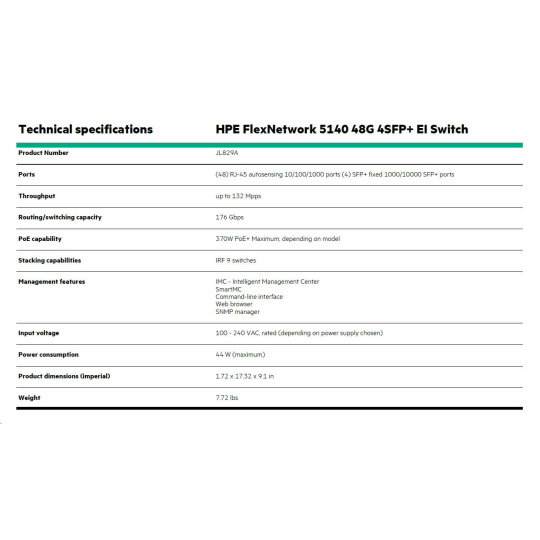

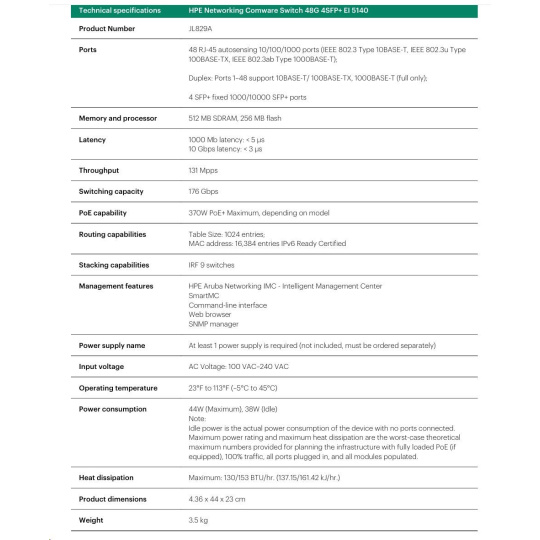

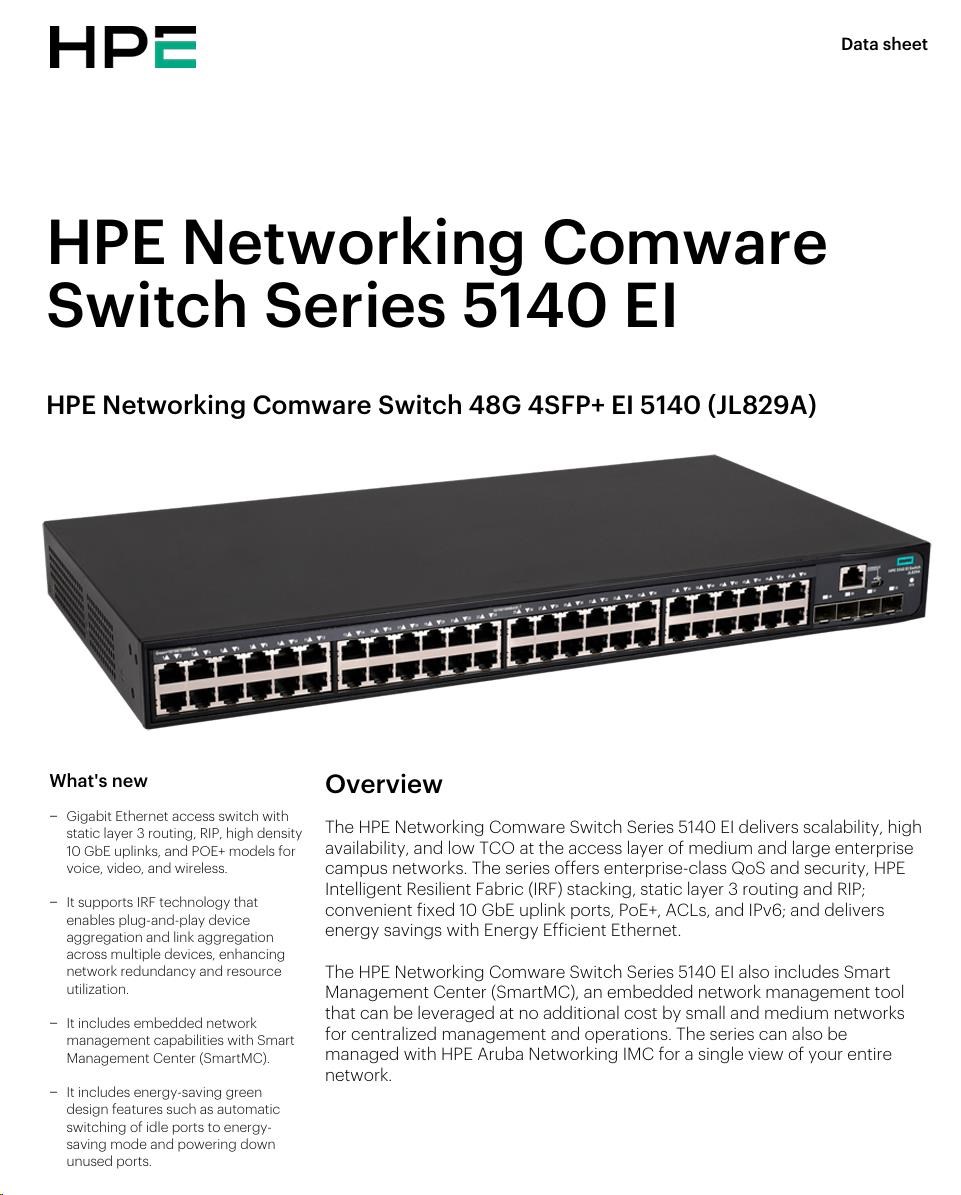

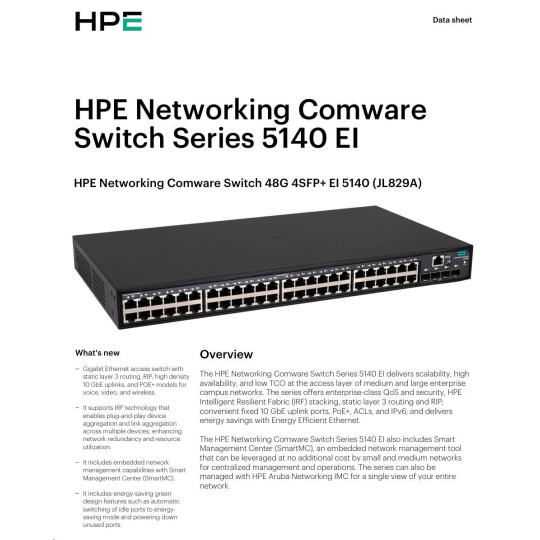

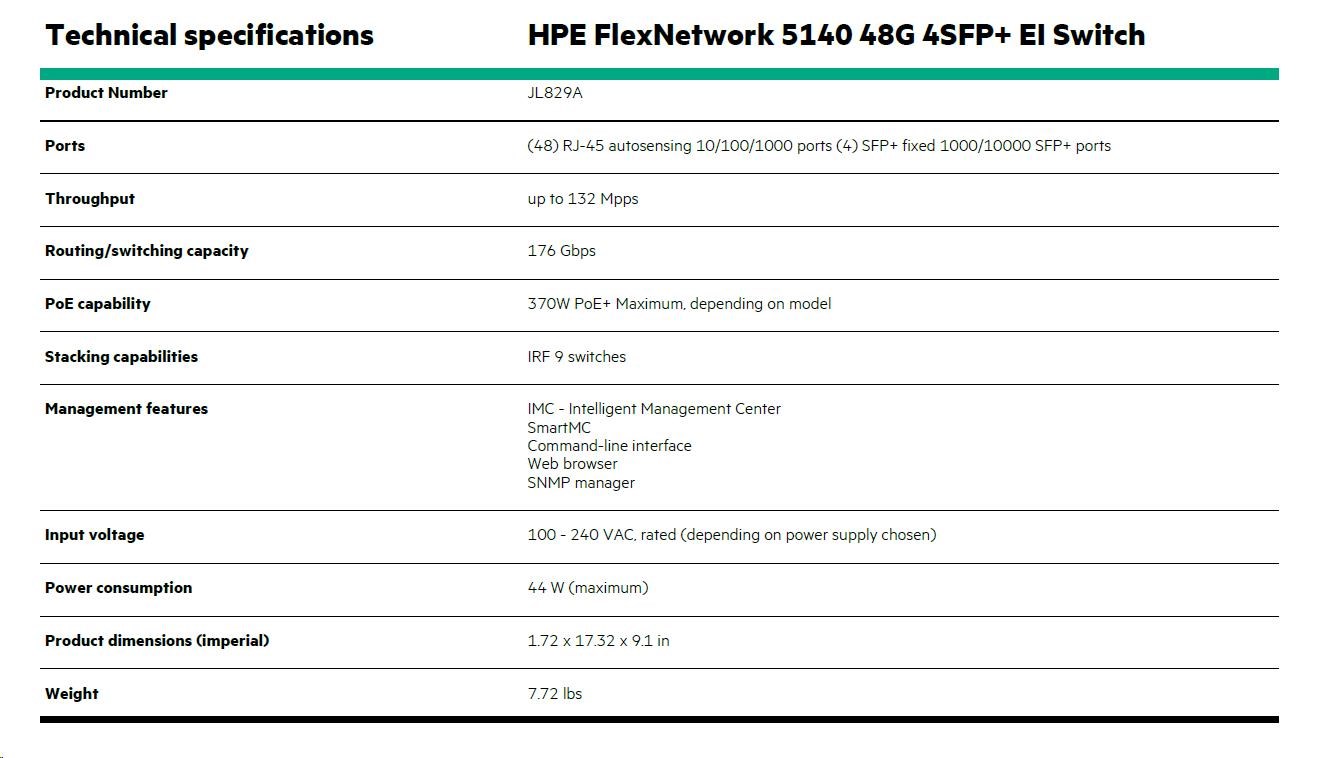

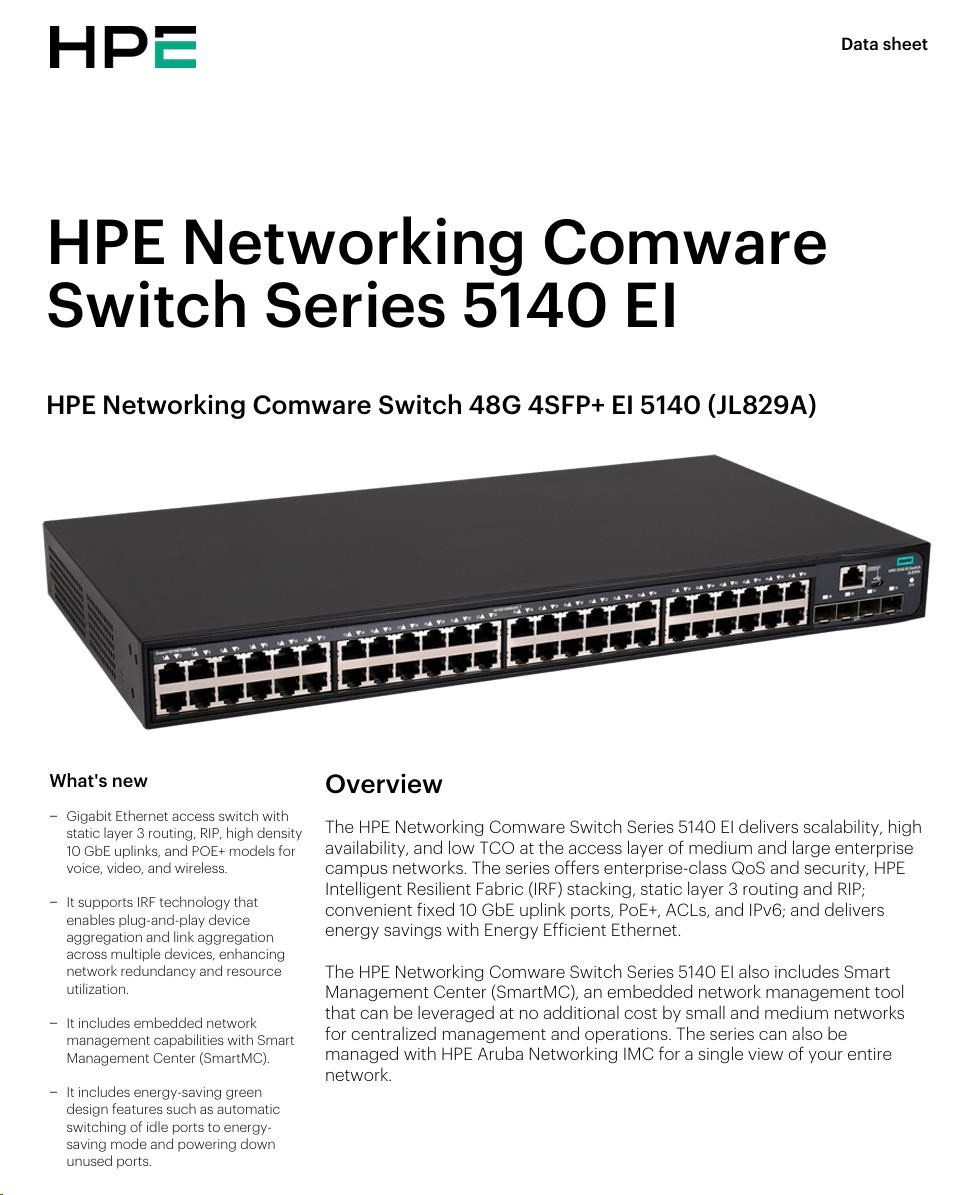

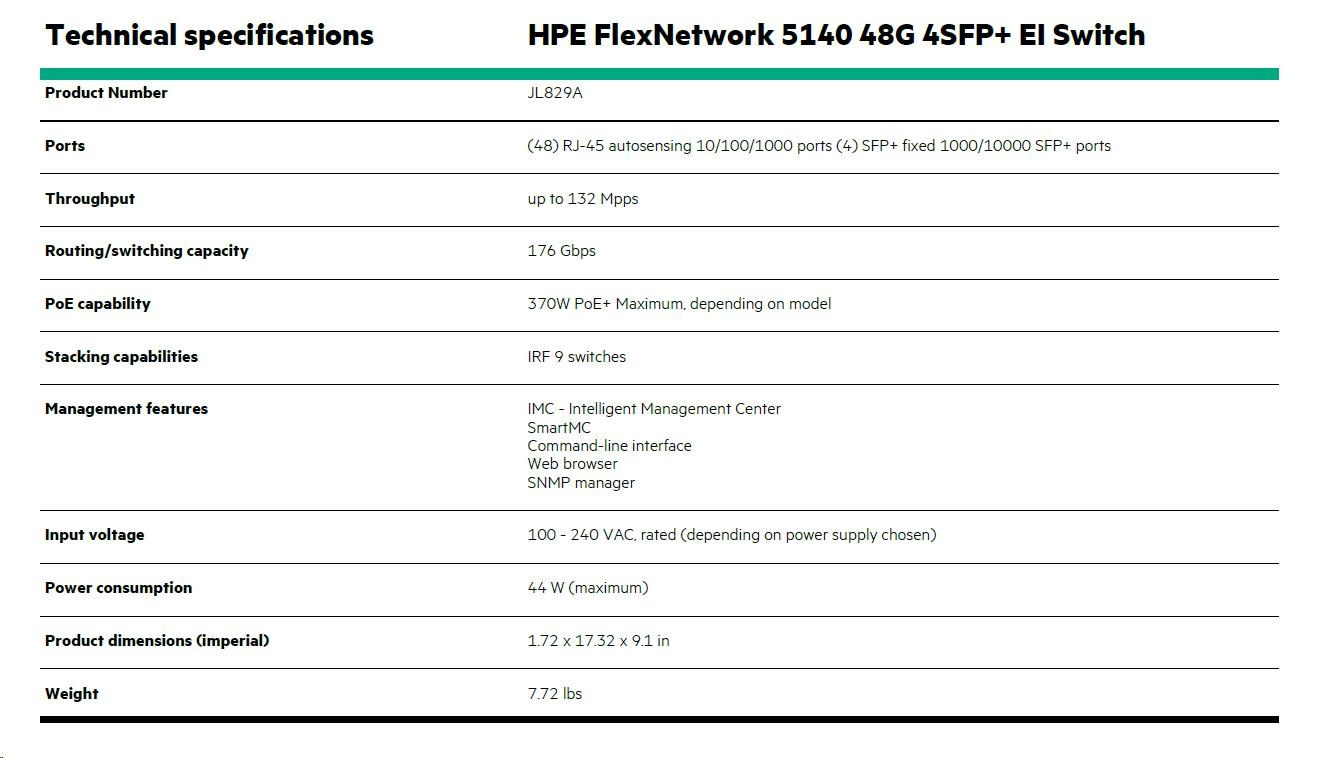

HPE FlexNetwork 5140 48G 4SFP+ EI Switch (JL829A)

I/O ports and slots

48 RJ-45 autosensing 10/100/1000 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T); Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only

4 SFP+ fixed 1000/10000 SFP+ ports

Additional ports and slots

1 RJ-45 serial console port

Physical characteristics

Dimensions

17.32(w) x 9.04(d) x 1.72(h) in (44 x 23 x 4.36 cm) (1U height)

Weight

7.72 lb (3.5 kg)

Memory and processor

512 MB SDRAM, 256 MB flash

Mounting and enclosure

Mounts in an EIA standard 19-inch telco rack or equipment cabinet (Rack Mount Kit R8M91A sold separately)

Performance

IPv6 Ready Certified

1000 Mb Latency

< 5 µs

10 Gbps Latency

< 3 µs

Throughput

131 Mpps

Routing/Switching capacity

176 Gbps

Routing table size

1024 entries

MAC address table size

16384 entries

Environment

Operating temperature

23°F to 113°F (-5°C to 45°C)

Operating relative humidity

10% to 90%, noncondensing

Non-operating/Storage temperature

-40°F to 158°F (-40°C to 70°C)

Non-operating/Storage relative humidity

5% to 95%, noncondensing

Acoustic

Low-speed fan: 42.2 dB, High-speed fan: 49.3 dB; ISO 7779

Electrical characteristics

Frequency

50/60 Hz

Maximum heat dissipation

130/153 BTU/hr (137.15/161.42 kJ/hr), For AC powered units. For DC powered units heat dissipation is 130 BTU/hr min, 171 BTU/hr max

Voltage

100 - 240 VAC

-48 to -60 VDC

Current

10 A

Maximum power rating

44 W

Idle power

38 W

Notes:

- Idle power is the actual power consumption of the device with no ports connected.

- Maximum power rating and maximum heat dissipation are the worst-case theoretical maximum numbers provided for planning the infrastructure with fully loaded PoE (if equipped), 100% traffic, all ports plugged in, and all modules populated.

- Power ratings for AC power indicated above. Current used is 5A Max when DC Power used. For DC input power, idle power is 38W, maximum DC power used is 50W.

Safety

UL 60950-1; EN 60825-1 Safety of Laser Products-Part 1; EN 60825-2 Safety of Laser Products-Part 2; IEC 60950-1; IEC 62368-1; CAN/CSA-C22.2 No. 60950-1; EN 62368-1/A11; FDA 21 CFR Subchapter J; ROHS Compliance

Emissions

FCC Part 15 Subpart B CLASS A; ICES-003 CLASS A; VCCI-CISPR 32 CLASS A; EN 55032 CLASS; AS/NZS CISPR32 CLASS A; CISPR 24; EN 55024; EN 61000-3-2; EN 61000-3-3; ETSI EN 300 386; GB/T 9254; YD/T 993

Immunity

Generic

EN 55024

ESD

EN300 386

Management

IMC - Intelligent Management Center; SmartMC; command-line interface; Web browser; SNMP Manager

Services

Refer to the Hewlett Packard Enterprise website at http://www.hpe.com/networking/services for details on the service-level descriptions and product numbers. For details about services and response times in your area, please contact your local Hewlett Packard Enterprise sales office.

Models

HPE Networking Comware Switch 24G POE+2SFP+2XGT EI 5140

JL823A

HPE Networking Comware Switch 48G PoE+ 4SFP+ EI 5140

JL824A

HPE Networking Comware Switch 48G POE+ 2SFP+ 2XGT EI 5140

JL825A

HPE Networking Comware Switch 24G SFP w/8G Combo 4SFP+ EI 5140

JL826A

HPE Networking Comware Switch 24G PoE+ 4SFP+ El 5140

JL827A

HPE Networking Comware Switch 24G 4SFP+ EI 5140

JL828A

HPE Networking Comware Switch 48G 4SFP+ EI 5140

JL829A

HPE Networking Comware Switch 24G 2SFP+ 2XGT EI 5140

R8J41A

HPE Networking Comware Switch 8G 2SFP 2GT Combo EI 5140

R8J42A

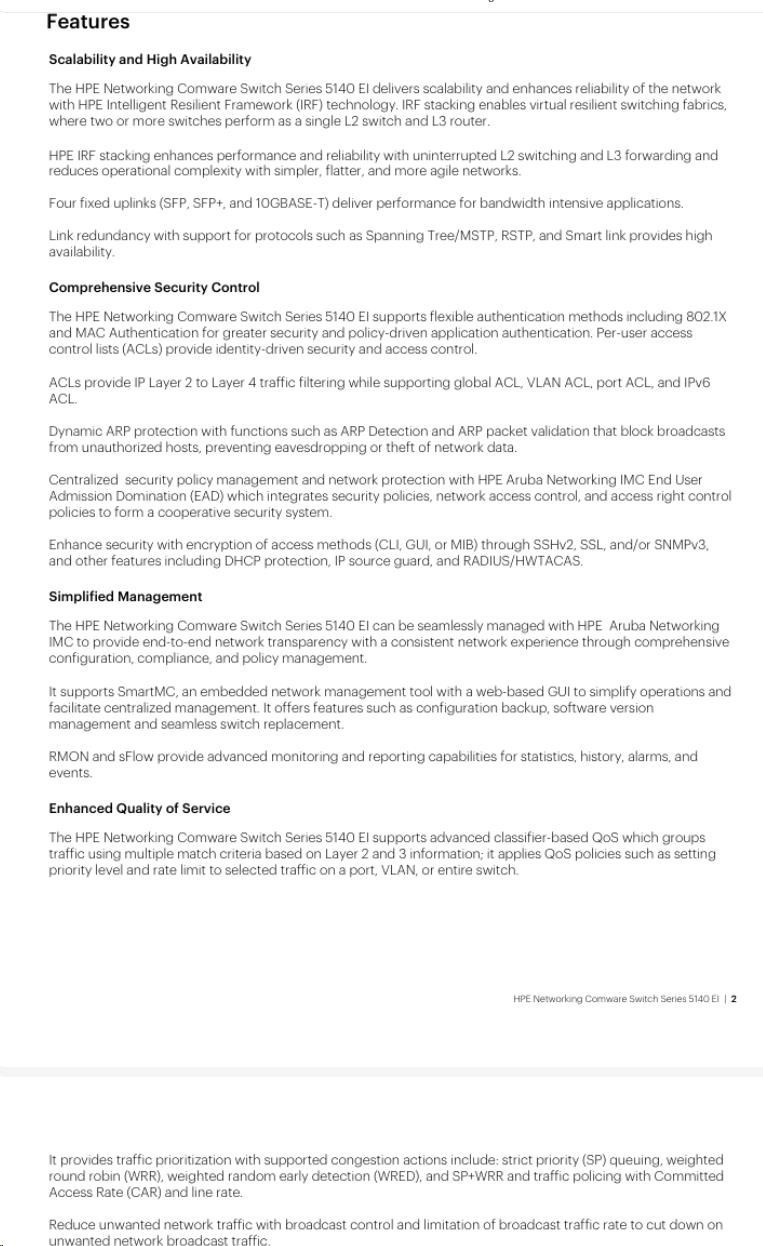

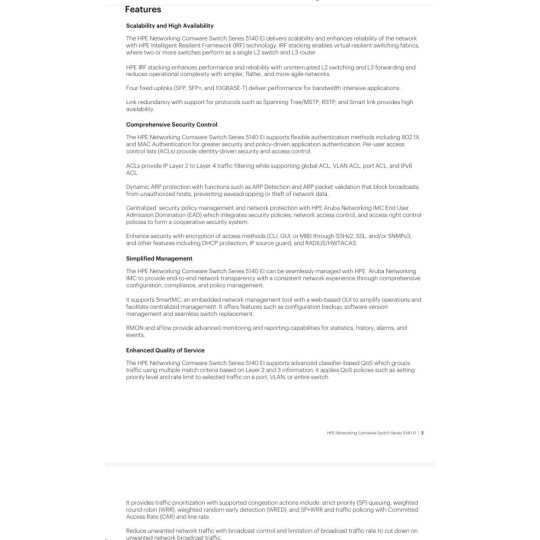

Key features

• Gigabit Ethernet access switch with static layer 3 routing, RIP, high density 10GbE uplinks and POE+ models for voice, video and wireless
• IRF technology that enables plug-and-play device aggregation and link aggregation across multiple devices
• Embedded network management capabilities at no additional cost with Smart Management Centre (SmartMC)
• Energy-saving green design features such as automatic switching of idle ports to energy-saving mode and powering down unused ports

Software-defined networking

• OpenFlow Supports OpenFlow 1.3 specification to enable SDN by allowing separation of the data (packet forwarding) and control (routing decision) paths

Quality of Service (QoS)

• Broadcast control Allows limitation of broadcast traffic rate to cut down on unwanted network broadcast traffic
• Advanced classifier-based QoS

Classifies traffic using multiple match criteria based on Layer 2, 3, and 4 information; applies QoS policies such as setting priority level and rate limit to selected traffic on a port, VLAN, or whole switch

• Powerful QoS feature Supports the following congestion actions: strict priority (SP) queuing, weighted round robin (WRR), and SP+WRR
• Traffic policing Supports Committed Access Rate (CAR) and line rate

Connectivity

• Auto-MDIX Automatically adjusts for straight-through or crossover cables on all 10/100/1000 ports
• Flow control Provides back pressure using standard IEEE 802.3x, reducing congestion in heavy traffic situations
• High-density connectivity Provides up to 48 fixed 10/100/1000BASE-T ports in a Layer 2/Layer 3 switch
• IEEE 802.3at Power over Ethernet (PoE+) support

Simplifies deployment and dramatically reduces installation costs by helping to eliminate the time and cost involved in supplying local power at each access point location

• Ethernet operations, administration and maintenance (OAM) Detects data link layer problems that occurred in the "last mile" using the IEEE 802.3ah OAM standard; monitors the status of the link between two devices

Resiliency and high availability

• Separate data and control paths Separate control from services and keeps service processing isolated; increases security and performance
• External redundant power supply Provides high reliability
• Smart link Allows 100 ms failover between links
• Spanning Tree/MSTP, RSTP, PVST+, RPVST+ Link redundancy with support for protocols such as Multiple Spanning Tree Protocol (MSTP), Rapid Spanning Tree Protocol (RSTP), Per-VLAN Spanning Tree (PVST+), Rapid Per-VLAN Spanning Tree (RPVST+), and Smart Link provides high availability
• Intelligent Resilient Fabric (IRF)

Creates virtual resilient switching fabrics, where two or more switches perform as a single L2 switch and L3 router; switches do not have to be co-located and can be part of a disaster-recovery system; servers or switches can be attached using standard LACP for automatic load balancing and high availability; can eliminate the need for complex protocols like Spanning Tree Protocol, (), or VRRP, thereby simplifying network operation

Layer 3 routing

• Static IP routing Provides manually configured routing for both IPv4 and IPv6 networks
• Open Shortest Path First (OSPF)

An Interior Gateway Protocol (IGP) that uses a link state routing algorithm; supports OSPFv1/v2 and OSPFv3

• Routing Information Protocol (RIP)

Uses a distance vector algorithm with UDP packets for route determination; supports RIPv1 and RIPv2 routing; includes loop protection

Management

• Remote configuration and management Enables configuration and management through a secure Web browser or a CLI located on a remote device
• Manager and operator privilege levels Provides read-only (operator) and read/write (manager) access on CLI and Web browser management interfaces
• Command authorization

Leverages HWTACACS to link a custom list of CLI commands to an individual network administrator's login; also provides an audit trail

• Secure Web GUI Provides a secure, easy-to-use graphical interface for configuring the module via HTTPS
• Multiple configuration files Stores easily to the flash image
• Complete session logging Provides detailed information for problem identification and resolution
• Remote monitoring (RMON)

Uses standard SNMP to monitor essential network functions; supports events, alarm, history, and statistics group plus a private alarm extension group

• IEEE 802.1AB Link Layer Discovery Protocol (LLDP)

Advertises and receives management information from adjacent devices on a network, facilitating easy mapping by network management applications

• sFlow (RFC 3176)

Provides scalable ASIC-based wirespeed network monitoring and accounting with no impact on network performance; this allows network operators to gather a variety of sophisticated network statistics and information for capacity planning and real-time network monitoring purposes

• Management VLAN Segments traffic to and from management interfaces, includingCLI/telnet, a Web browser interface, and SNMP
• Remote intelligent mirroring

Mirrors ingress ACL-selected traffic from a switch port or VLAN to a local or remote switch port anywhere on the network

• Device Link Detection Protocol (DLDP)

Monitors a cable between two compatible switches and shuts down the ports on both ends if the cable is broken, which prevents network problems such as loops

• IPv6 management

Provides future-proof networking because the switch is capable of being managed whether the attached network is running IPv4 or IPv6; supports pingv6, tracertv6, Telnetv6, TFTPv6, DNSv6, syslogv6, FTPv6, SNMPv6, DHCPv6, and RADIUS for IPv6

• Troubleshooting

Ingress and egress port monitoring enables network problem-solving; virtual cable tests provide visibility into cable problems

• Smart Management Center (SmartMC)

Embedded network management tool with a web-based GUI to simplify operations and facilitate centralized management. It is made available at no additional cost and offers centralized configuration backup, software version management and seamless switch replacement.

• HPE Intelligent Management Center (IMC)

Integrates fault management, element configuration, and network monitoring from a central vantage point; built-in support for third-party devices enables network administrators to centrally manage all network elements with a variety of automated tasks, including discovery, categorization, baseline configurations, and software images; the software also provides configuration comparison tools, version tracking, change alerts, and more

• Network Management

SNMP v1/v2c/v3, MIB-II with Traps, and RADIUS Authentication Client MIB (RFC 2618); embedded HTML management tool with secure access

Security

• Access control lists (ACLs) Provides IP Layer 2 to Layer 4 traffic filtering; supports global ACL, VLAN ACL, port ACL, and IPv6 ACL
• IEEE 802.1X

Industry-standard method of user authentication using an IEEE 802.1X supplicant on the client in conjunction with a RADIUS server

• MAC-based authentication Client is authenticated with the RADIUS server based on the client's MAC address
• Identity-driven security and access control

- Per-user ACLs

Permits or denies user access to specific network resources based on user identity and time of day, allowing multiple types of users on the same network to access specific network services without risking network security or providing unauthorized access to sensitive data

- Automatic VLAN assignment Automatically assigns users to the appropriate VLAN based on their identities

• Secure management access Delivers secure encryption of all access methods (CLI, GUI, or MIB) through SSHv2, SSL, HTTPS and/or SNMPv3
• Secure FTP/ SCP

Allows secure file transfer to and from the switch; protects against unwanted file downloads or unauthorized copying of a switch configuration file

• Guest VLAN Provides a browser-based environment to authenticated clients that is similar to IEEE 802.1X
• Port security Allows access only to specified MAC addresses, which can be learned or specified by the administrator
• Port isolation Secures and adds privacy, and prevents malicious attackers from obtaining user information
• STP BPDU port protection Blocks Bridge Protocol Data Units (BPDUs) on ports that do not require BPDUs, preventing forged BPDU attacks
• STP root guard Protects the root bridge from malicious attacks or configuration mistakes
• DHCP protection Blocks DHCP packets from unauthorized DHCP servers, preventing denial-of-service attacks
• IP source guard Helps prevent IP spoofing attacks
• Dynamic ARP protection Blocks ARP broadcasts from unauthorized hosts, preventing eavesdropping or theft of network data
• RADIUS/HWTACACS Eases switch management security administration by using a password authentication server

Performance

• Nonblocking architecture Up to 176 Gb/s nonblocking switching fabric provides wirespeed switching with up to 130.9 Mpps throughput
• Hardware-based wirespeed access control lists (ACLs)

Help provide high levels of security and ease of administration without impacting network performance with a feature-rich TCAM-based ACL implementation

Device support

• Prestandard PoE Support Detects and provides power to prestandard PoE devices such as wireless LAN access points and IP phones

Convergence

• IEEE 802.1AB Link Layer Discovery Protocol (LLDP) Facilitates easy mapping using network management applications with LLDP automated device discovery protocol
• LLDP-MED Is a standard extension that automatically configures network devices, including LLDP-capable IP phones
• LLDP-CDP compatibility Receives and recognizes CDP packets from Cisco's IP phones for seamless interoperation
• IEEE 802.3at Power over Ethernet (PoE+)

Provides up to 30 W per port that allows support of the latest PoE+-capable devices such as IP phones, wireless access points, and security cameras, as well as any IEEE 802.3af-compliant end device; eliminates the cost of additional electrical cabling and circuits that would otherwise be necessary in IP phone and WLAN deployments

• PoE allocations

Supports multiple methods (automatic, IEEE 802.3af class, LLDP-MED, or user-specified) to allocate PoE power for more efficient energy savings

• Voice VLAN Automatically assigns VLAN and priority for IP phones, simplifying network configuration and maintenance
• IP multicast snooping (data-driven IGMP) Prevents flooding of IP multicast traffic

Additional information

• Green IT and power

Improves energy efficiency through the use of the latest advances in silicon development; shuts off unused ports and utilizes variable-speed fans, reducing energy costs

• Green initiative support Provides support for RoHS and WEEE regulations
• Unified Hewlett Packard Enterprise Comware operating system with modular architecture

Provides an easy-to-enhance-and-extend feature set, which doesn't require whole-scale changes; all switching, routing, and security platforms leverage the Comware OS, a common unified modular operating system

Energy Efficient Ethernet (EEE) Support Reduces power consumption in accordance with IEEE 802.3az

Layer 2 switching

• 16K MAC address table Provides access to many Layer 2 devices
• VLAN support and tagging Supports IEEE 802.1Q with 4,094 simultaneous VLAN IDs
• IEEE 802.1ad QinQ and selective QinQ

Increase the scalability of an Ethernet network by providing a hierarchical structure; connect multiple LANs on a high-speed campus or metro network

• 10GbE port aggregation Allows grouping of ports to increase overall data throughput to a remote device
• Device Link Detection Protocol (DLDP)

Monitors link connectivity and shuts down ports at both ends if unidirectional traffic is detected, preventing loops in STP-based networks

• Jumbo Frame Support Improves the performance of large data transfers; supports frame size of up to 9K-bytes

Layer 3 services

• Address Resolution Protocol (ARP)

Determines the MAC address of another IP host in the same subnet; supports static ARPs; gratuitous ARP allows detection of duplicate IP addresses; proxy ARP allows normal ARP operation between subnets or when subnets are separated by a Layer 2 network

• Dynamic Host Configuration Protocol (DHCP)

Simplifies the management of large IP networks; supports client; DHCP Relay enables DHCP operation across subnets

• Loopback interface address Defines an address that can always be reachable, improving diagnostic capability
• User Datagram Protocol (UDP) helper function

Allows UDP broadcasts to be directed across router interfaces to specific IP unicast or subnet broadcast addresses and prevents server spoofing for UDP services such as DHCP

• Route maps Provide more control during route redistribution; allow filtering and altering of route metrics
• DHCP server Centralizes and reduces the cost of IPv4 address management

Warranty and support

• Limited Lifetime Warranty

See http://www.hpe.com/networking/warrantysummary for warranty and support information included with your product purchase.

• Software releases

To find software for your product, refer to http://www.hpe.com/networking/support; for details on the software releases available with your product purchase, refer to http://www.hpe.com/networking/warrantysummary

Standards and Protocols (Applies to all products in series)

Device Management

• RFC 1157 SNMPv1/v2c
• RFC 1305 NTPv3
• RFC 2573 (SNMPv3 Applications)
• RFC 2819 (RMON groups Alarm, Event, History and Statistics only)
• RFC 3416 (SNMP Protocol Operations v2)
• HTML and telnet management
• Multiple Configuration Files
• SNMP v3 and RMON RFC support
• SSHv1/SSHv2 Secure Shell
• TACACS/TACACS+
• Web UI

QoS/CoS

• RFC 2474 DS Field in the IPv4 and IPv6 Headers
• RFC 3260 New Terminology and Clarifications for DiffServ

General Protocols

• IEEE 802.1ad Q-in-Q
• IEEE 802.1ak Multiple Registration Protocol (MRP) and Multiple VLAN Registration Protocol (MVRP)
• IEEE 802.1AX-2008 Link Aggregation
• IEEE 802.1D MAC Bridges
• IEEE 802.1p Priority
• IEEE 802.1Q VLANs
• IEEE 802.1s Multiple Spanning Trees
• IEEE 802.1w Rapid Reconfiguration of Spanning Tree
• IEEE 802.1X PAE
• IEEE 802.3 Type 10BASE-T
• IEEE 802.3ab 1000BASE-T
• IEEE 802.3ac (VLAN Tagging Extension)
• IEEE 802.3ad Link Aggregation Control Protocol (LACP)
• IEEE 802.3ae 10-Gigabit Ethernet
• IEEE 802.3af Power over Ethernet
• IEEE 802.3at Power over Ethernet Plus
• IEEE 802.3az Energy Efficient Ethernet
• IEEE 802.3i 10BASE-T
• IEEE 802.3u 100BASE-X
• IEEE 802.3x Flow Control
• IEEE 802.3z 1000BASE-X
• RFC 768 UDP
• RFC 783 TFTP Protocol (revision 2)
• RFC 791 IP
• RFC 792 ICMP
• RFC 793 TCP
• RFC 826 ARP
• RFC 854 TELNET
• RFC 855 Telnet Option Specification
• RFC 894 IP over Ethernet
• RFC 950 Internet Standard Subnetting Procedure
• RFC 951 BOOTP
• RFC 1027 Proxy ARP
• RFC 1042 IP Datagrams
• RFC 1071 Computing the Internet Checksum
• RFC 1123 Requirements for Internet Hosts
• RFC 1166 - IP Addresses
• RFC 1213 Management Information Base for Network Management of TCP/IP-based internets
• RFC 1256 ICMP Router Discovery Protocol (IRDP)
• RFC 1305 NTPv3
• RFC 1350 TFTP Protocol (revision 2)
• RFC 1519 CIDR
• RFC 1533 DHCP Options and BOOTP Vendor Extensions
• RFC 1591 DNS (client only)
• RFC 1643 - Definitions of Managed Objects for the Ethernet-like Interface Types
• RFC 1812 IPv4 Routing
• RFC 1866 Hypertext Markup Language - 2.0
• RFC 1901 - Introduction to Community-based SNMPv2
• RFC 1902-1907 - SNMPv2
• RFC 2131 DHCP
• RFC 2236 IGMP Snooping
• RFC 2462 IPv6 Stateless Address Autoconfiguration
• RFC 2474 Definition of the Differentiated Services Field (DS Field) in the IPv4 and IPv6 Headers
• RFC 2475 Architecture for Differentiated Services
• RFC 2597 Assured Forwarding PHB Group
• RFC 2616 HTTP Compatibility v1.1
• RFC 2665 Definitions of Managed Objects for the Ethernet-like Interface Types
• RFC 2668 Definitions of Managed Objects for IEEE 802.3 Medium Attachment Units (MAUs)
• RFC 2865 Remote Authentication Dial In User Service (RADIUS)
• RFC 2866 RADIUS Accounting
• RFC 3046 - DHCP Relay Agent Information Option
• RFC 3246 Expedited Forwarding PHB
• RFC 3414 User-based Security Model (USM) for version 3 of the Simple Network Management Protocol (SNMPv3)
• RFC 3415 View-based Access Control Model (VACM) for the Simple Network Management Protocol (SNMP)
• RFC 3416 Protocol Operations for SNMP
• RFC 3418 Management Information Base (MIB) for the Simple Network Management Protocol (SNMP)
• RFC 3576 Ext to RADIUS (CoA only)
• RFC 3580 - IEEE 802.1X Remote Authentication Dial In User Service (RADIUS) Usage Guidelines
• RFC 3587 IPv6 Global Unicast Address Format
• RFC 3810 Multicast Listener Discovery Version 2 (MLDv2) for IPv6
• RFC 4030 Authentication Suboption for DHCP Relay Agent
• RFC 4213 Basic IPv6 Transition Mechanisms
• RFC 4291 IP Version 6 Addressing Architecture
• RFC 4541 Considerations for Internet Group Management Protocol (IGMP) and Multicast Listener Discovery (MLD) Snooping Switches
• RFC 4575 A Session Initiation Protocol (SIP) Event Package for Conference State
• RFC 4675 RADIUS VLAN & Priority
• RFC 5095 Deprecation of Type 0 Routing Headers in IPv6
• 802.1r - GARP Proprietary Attribute Registration Protocol (GPRP)

IPv6

• RFC 1981 IPv6 Path MTU Discovery
• RFC 2460 IPv6 Specification
• RFC 2461 IPv6 Neighbor Discovery
• RFC 2463 ICMPv6
• RFC 2464 Transmission of IPv6 over Ethernet Networks
• RFC 3162 RADIUS and IPv6
• RFC 3306 Unicast-Prefix-based IPv6 Multicast Addresses
• RFC 3315 DHCPv6 (client and relay)
• RFC 3484 Default Address Selection for IPv6
• RFC 3736 Stateless Dynamic Host Configuration Protocol (DHCP) Service for IPv6
• RFC 4291 IP Version 6 Addressing Architecture
• RFC 4293 MIB for IP
• RFC 4443 ICMPv6
• RFC 4861 IPv6 Neighbor Discovery
• RFC 4862 IPv6 Stateless Address Auto-configuration
• RFC 6724 Default Address Selection for Internet Protocol Version 6 (IPv6)

MIBs

• RFC 1212 Concise MIB Definitions
• RFC 1213 MIB II
• RFC 1493 Bridge MIB
• RFC 1757 Remote Network Monitoring MIB
• RFC 2096 IP Forwarding Table MIB
• RFC 2233 Interface MIB
• RFC 2571 SNMP Framework MIB
• RFC 2572 SNMP-MPD MIB
• RFC 2573 SNMP-Notification MIB
• RFC 2573 SNMP-Target MIB
• RFC 2574 SNMP USM MIB
• RFC 2618 RADIUS Authentication Client MIB
• RFC 2620 RADIUS Accounting Client MIB
• RFC 2665 Ethernet-Like-MIB
• RFC 2668 802.3 MAU MIB
• RFC 2674 802.1p and IEEE 802.1Q Bridge MIB
• RFC 2737 Entity MIB (Version 2)
• RFC 2819 RMON MIB
• RFC 2863 The Interfaces Group MIB
• RFC 2925 Ping MIB
• RFC 3414 SNMP-User based-SM MIB
• RFC 3415 SNMP-View based-ACM MIB
• RFC 3418 MIB for SNMPv3
• RFC 3621 Power Ethernet MIB

IP Multicast

• RFC 1112 IGMPv1
• RFC 3376 IGMPv3

Network Management

• IEEE 802.1AB Link Layer Discovery Protocol (LLDP)
• RFC 2579 Textual Conventions for SMIv2
• RFC 2580 Conformance Statements for SMIv2
• RFC 2819 Four groups of RMON: 1 (statistics), 2 (history), 3 (alarm) and 9 (events)
• ANSI/TIA-1057 LLDP Media Endpoint Discovery (LLDP-MED)
• SNMPv1/v2c/v3

Security

• IEEE 802.1X Port Based Network Access Control
• RFC 1492 TACACS+
• RFC 2138 RADIUS Authentication
• RFC 2139 RADIUS Accounting
• RFC 2865 RADIUS (client only)
• RFC 2866 RADIUS Accounting
• RFC 3260 New Terminology and Clarifications for DiffServ
• Secure Sockets Layer (SSL)
• SSHv2 Secure Shell

BTO Models

Switch Chassis

Rule #

Description

SKU

2, 3, 4

HPE Networking Comware Switch 24G POE+2SFP+2XGT EI 5140

JL823A

• 24 POE RJ-45 autosensing 10/100/1000 ports
• 2 SFP Ports, 2 XGT Ports
• min=0 \ max=2 SFP Transceivers
• Power supply included
• 1U - Height

HPE Networking Comware Switch 24G POE+2SFP+2XGT EI 5140

JL823A

• C15 PDU Jumper Cord (NA/MEX/TW/JP)

HPE Networking Comware Switch 24G POE+2SFP+2XGT EI 5140

JL823A

• C15 PDU Jumper Cord (ROW)

HPE Networking Comware Switch 24G POE+2SFP+2XGT EI 5140

JL823A

• NEMA L6-20P Cord (NA/MEX/JP/TW)

HPE Networking Comware Switch 24G POE+2SFP+2XGT EI 5140

JL823A

• No Localized Power Cord Selected

2, 3, 4

HPE Networking Comware Switch 48G PoE+ 4SFP+ EI 5140

JL824A

• 48 RJ-45 autosensing 10/100/1000BASE-T ports
• 4 SFP+ ports
• min=0 \ max=4 SFP+ Transceivers
• Power supply included
• 1U - Height

HPE Networking Comware Switch 48G PoE+ 4SFP+ EI 5140

JL824A

• C15 PDU Jumper Cord (NA/MEX/TW/JP)

HPE Networking Comware Switch 48G PoE+ 4SFP+ EI 5140

JL824A

• C15 PDU Jumper Cord (ROW)

HPE Networking Comware Switch 48G PoE+ 4SFP+ EI 5140

JL824A

• NEMA L6-20P Cord (NA/MEX/JP/TW)

HPE Networking Comware Switch 48G PoE+ 4SFP+ EI 5140

JL824A

• No Localized Power Cord Selected

2, 3, 4

HPE Networking Comware Switch 48G POE+ 2SFP+ 2XGT EI 5140

JL825A

• 48 POE RJ-45 autosensing 10/100/1000 ports
• 2 SFP+ Ports, 2 XGT Ports
• min=0 \ max=2 SFP+ Transceivers
• Power supply included
• 1U - Height

HPE Networking Comware Switch 48G POE+ 2SFP+ 2XGT EI 5140

JL825A

• C15 PDU Jumper Cord (NA/MEX/TW/JP)

HPE Networking Comware Switch 48G POE+ 2SFP+ 2XGT EI 5140

JL825A

• C15 PDU Jumper Cord (ROW)

HPE Networking Comware Switch 48G POE+ 2SFP+ 2XGT EI 5140

JL825A

• NEMA L6-20P Cord (NA/MEX/JP/TW)

HPE Networking Comware Switch 48G POE+ 2SFP+ 2XGT EI 5140

JL825A

• No Localized Power Cord Selected

1, 2

HPE Networking Comware Switch 24G SFP w/8G Combo 4SFP+ EI 5140

JL826A

• 24 SFP ports (Of the 24, 8 are dual-personality ports - autosensing 10/100/1000BASE-T or SFP) min=0 \ max=24 SFP Transceivers
• 4 SFP+ ports min=0 \ max=4 SFP+ Transceivers
• Must select min 1 power supply 1U - Height

2, 3, 4

HPE Networking Comware Switch 24G PoE+ 4SFP+ El 5140

JL827A

• 24 RJ-45 autosensing 10/100/1000 ports
• 4 SFP+ ports min=0 \ max=4 SFP+ Transceivers
• Power supply included 1U - Height

HPE Networking Comware Switch 24G PoE+ 4SFP+ El 5140

JL827A

C15 PDU Jumper Cord (NA/MEX/TW/JP)

HPE Networking Comware Switch 24G PoE+ 4SFP+ El 5140

JL827A

C15 PDU Jumper Cord (ROW)

HPE Networking Comware Switch 24G PoE+ 4SFP+ El 5140

JL827A

NEMA L6-20P Cord (NA/MEX/JP/TW)

HPE Networking Comware Switch 24G PoE+ 4SFP+ El 5140

JL827A

No Localized Power Cord Selected

2, 3, 4

HPE Networking Comware Switch 24G 4SFP+ EI 5140

JL828A

• 24 RJ-45 autosensing 10/100/1000 ports
• 4 SFP+ ports min=0 \ max=4 SFP+ Transceivers
• Power supply included 1U - Height

HPE Networking Comware Switch 24G 4SFP+ EI 5140

JL828A

• C15 PDU Jumper Cord (NA/MEX/TW/JP)

HPE Networking Comware Switch 24G 4SFP+ EI 5140

JL828A

• C15 PDU Jumper Cord (ROW)

HPE Networking Comware Switch 24G 4SFP+ EI 5140

JL828A

• NEMA L6-20P Cord (NA/MEX/JP/TW)

HPE Networking Comware Switch 24G 4SFP+ EI 5140

JL828A

• No Localized Power Cord Selected

2, 3, 4

HPE Networking Comware Switch 48G 4SFP+ EI 5140

JL829A

• 48 RJ-45 autosensing 10/100/1000 ports
• 4 SFP+ ports min=0 \ max=4 SFP+ Transceivers
• Power supply included 1U - Height

HPE Networking Comware Switch 48G 4SFP+ EI 5140

JL829A

• C15 PDU Jumper Cord (NA/MEX/TW/JP)

HPE Networking Comware Switch 48G 4SFP+ EI 5140

JL829A

• C15 PDU Jumper Cord (ROW)

HPE Networking Comware Switch 48G 4SFP+ EI 5140

JL829A

• NEMA L6-20P Cord (NA/MEX/JP/TW)

HPE Networking Comware Switch 48G 4SFP+ EI 5140

JL829A

• No Localized Power Cord Selected

2, 3, 4

HPE Networking Comware Switch 24G 2SFP+ 2XGT EI 5140

R8J41A

• 24 RJ-45 autosensing 10/100/1000 ports
• 2 SFP+ Ports, 2 XGT Ports
• min=0 \ max=2 SFP+ Transceivers
• Power supply included
• 1U - Height

HPE Networking Comware Switch 24G 2SFP+ 2XGT EI 5140

R8J41A

• C15 PDU Jumper Cord (NA/MEX/TW/JP)

HPE Networking Comware Switch 24G 2SFP+ 2XGT EI 5140

R8J41A

• C15 PDU Jumper Cord (ROW)

HPE Networking Comware Switch 24G 2SFP+ 2XGT EI 5140

R8J41A

• NEMA L6-20P Cord (NA/MEX/JP/TW)

HPE Networking Comware Switch 24G 2SFP+ 2XGT EI 5140

R8J41A

• No Localized Power Cord Selected

1, 3, 4

HPE Networking Comware Switch 8G 2SFP 2GT Combo EI 5140

R8J42A

• 8 RJ-45 autosensing 10/100/1000 ports
• 2 SFP Ports, 2 GT Ports (4 port combo unit, can use 1 pair of 2 ports at a time)
• min=0 \ max=2 SFP Transceivers
• Power supply included
• 1U - Height

HPE Networking Comware Switch 8G 2SFP 2GT Combo EI 5140

R8J42A

• C15 PDU Jumper Cord (NA/MEX/TW/JP)

HPE Networking Comware Switch 8G 2SFP 2GT Combo EI 5140

R8J42A

• C15 PDU Jumper Cord (ROW)

HPE Networking Comware Switch 8G 2SFP 2GT Combo EI 5140

R8J42A

• NEMA L6-20P Cord (NA/MEX/JP/TW)

HPE Networking Comware Switch 8G 2SFP 2GT Combo EI 5140

R8J42A

• No Localized Power Cord Selected

Configuration Rules

Rule #

Description

1

The following Transceivers install into this Switch: (SFP Ports)

HPE Networking X115 100M SFP LC FX Transceiver

JD102B

HPE Networking X110 100M SFP LC LX Transceiver

JD120B

HPE Networking X115 100M SFP LC BX 10-U Transceiver

JD100A

HPE Networking X115 100M SFP LC BX 10-D Transceiver

JD101A

HPE Networking X120 1G SFP LC SX Transceiver

JD118B

HPE Networking X120 1G SFP LC LX Transceiver

JD119B

HPE Networking X120 1G SFP RJ45 T Transceiver

JD089B

HPE Networking X120 1G SFP LC BX 10-U Transceiver

JD098B

HPE Networking X120 1G SFP LC BX 10-D Transceiver

JD099B

HPE Networking X120 1G SFP LC LH100 Transceiver

JD103A

2

The following Transceivers install into this Switch: (SFP+ Ports)

HPE Networking X120 1G SFP LC SX Transceiver

JD118B

HPE Networking X120 1G SFP LC LX Transceiver

JD119B

HPE Networking X120 1G SFP RJ45 T Transceiver

JD089B

HPE Networking X120 1G SFP LC BX 10-U Transceiver

JD098B

HPE Networking X120 1G SFP LC BX 10-D Transceiver

JD099B

HPE Networking X120 1G SFP LC LH100 Transceiver

JD103A

HPE Networking X130 10G SFP+ LC SR Transceiver

JD092B

HPE Networking X130 10G SFP+ LC LR Transceiver

JD094B

HPE X130 10G SFP+ LC BiDi 10km-Uplink Transceiver

JL737A

HPE X130 10G SFP+ LC BiDi 10km-Downlink Transceiver

JL738A

HPE X130 10G SFP+ LC BiDi 40km-Uplink Transceiver

JL739A

HPE X130 10G SFP+ LC BiDi 40km-Downlink Transceiver

JL740A

HPE Networking X240 10G SFP+ SFP+ 0.65m DAC Cable

JD095C

HPE Networking X240 10G SFP+ SFP+ 1.2m DAC Cable

JD096C

HPE Networking X240 10G SFP+ SFP+ 3m DAC Cable

JD097C

HPE FlexNetwork X240 10G SFP+ to SFP+ 5m Direct Attach Copper Cable

JG081C

HPE X2A0 10G SFP+ to SFP+ 7m Active Optical Cable

JL290A

HPE X2A0 10G SFP+ to SFP+ 10m Active Optical Cable

JL291A

HPE X2A0 10G SFP+ to SFP+ 20m Active Optical Cable

JL292A

3

Localization (Wall Power Cord) required on orders without #B2B, #B2C (PDU Power Cord), #B2E or #AC3. (See HPN Localization Menu)

4

#B2E is Offered only in NA, Mexico, Taiwan and Japan.

Notes:

- Drop down under power supply should offer the following options and results:

o Switch/Router/Power Supply to PDU Power Cord - #B2B in North America, Mexico, Taiwan, and Japan or #B2C ROW. (Watson Default B2B or B2C for Rack Level CTO)

o Switch/Router/Power Supply to Wall Power Cord - Localized Option (Watson Default for BTO and Box Level CTO)

o High Volt Switch/Router/Power Supply to Wall Power Cord - #B2E Option. (Offered only in North America, Mexico, Taiwan, and Japan)

o No Localized Power Cord Selected - #AC3 Option

- OCA Only Model Selection Form - HPE Offering > HPE Aruba Networking > Switches - FlexNetwork: 5140 EI Switch Series

Transceivers

SFP Transceivers

Notes:

Enter the following menu selections as integrated to the CTO Model X above if order is factory built.

Rule #

Description

SKU

HPE Networking X115 100M SFP LC FX Transceiver

JD102B

HPE Networking X110 100M SFP LC LX Transceiver

JD120B

HPE Networking X115 100M SFP LC BX 10-U Transceiver

JD100A

HPE Networking X115 100M SFP LC BX 10-D Transceiver

JD101A

HPE Networking X120 1G SFP LC SX Transceiver

JD118B

HPE Networking X120 1G SFP LC LX Transceiver

JD119B

HPE Networking X120 1G SFP RJ45 T Transceiver

JD089B

HPE Networking X120 1G SFP LC BX 10-U Transceiver

JD098B

HPE Networking X120 1G SFP LC BX 10-D Transceiver

JD099B

HPE Networking X120 1G SFP LC LH100 Transceiver

JD103A

SFP+ Transceivers

Rule #

Description

SKU

HPE Networking X130 10G SFP+ LC SR Transceiver

JD092B

HPE Networking X130 10G SFP+ LC LR Transceiver

JD094B

HPE X130 10G SFP+ LC BiDi 10km-Uplink Transceiver

JL737A

HPE X130 10G SFP+ LC BiDi 10km-Downlink Transceiver

JL738A

HPE X130 10G SFP+ LC BiDi 40km-Uplink Transceiver

JL739A

HPE X130 10G SFP+ LC BiDi 40km-Downlink Transceiver

JL740A

HPE Networking X240 10G SFP+ SFP+ 0.65m DAC Cable

JD095C

HPE Networking X240 10G SFP+ SFP+ 1.2m DAC Cable

JD096C

HPE Networking X240 10G SFP+ SFP+ 3m DAC Cable

JD097C

HPE FlexNetwork X240 10G SFP+ to SFP+ 5m Direct Attach Copper Cable

JG081C

HPE X2A0 10G SFP+ to SFP+ 7m Active Optical Cable

JL290A

HPE X2A0 10G SFP+ to SFP+ 10m Active Optical Cable

JL291A

HPE X2A0 10G SFP+ to SFP+ 20m Active Optical Cable

JL292A

Cables

Multi-Mode Cables

Rule #

Description

SKU

HPE LC to LC Multi-mode OM3 2-Fiber 0.5m 1-Pack Fiber Optic Cable

AJ833A

HPE LC to LC Multi-mode OM3 2-Fiber 1.0m 1-Pack Fiber Optic Cable

AJ834A

HPE LC to LC Multi-mode OM3 2-Fiber 2.0m 1-Pack Fiber Optic Cable

AJ835A

HPE LC to LC Multi-mode OM3 2-Fiber 5.0m 1-Pack Fiber Optic Cable

AJ836A

HPE LC to LC Multi-mode OM3 2-Fiber 15.0m 1-Pack Fiber Optic Cable

AJ837A

HPE LC to LC Multi-mode OM3 2-Fiber 30.0m 1-Pack Fiber Optic Cable

AJ838A

HPE LC to LC Multi-mode OM3 2-Fiber 50.0m 1-Pack Fiber Optic Cable

AJ839A

HPE Premier Flex LC/LC Multi-mode OM4 2 Fiber 1m Cable

QK732A

HPE Premier Flex LC/LC Multi-mode OM4 2 Fiber 2m Cable

QK733A

HPE Premier Flex LC/LC Multi-mode OM4 2 Fiber 5m Cable

QK734A

HPE Premier Flex LC/LC Multi-mode OM4 2 Fiber 15m Cable

QK735A

HPE Premier Flex LC/LC Multi-mode OM4 2 Fiber 30m Cable

QK736A

HPE Premier Flex LC/LC Multi-mode OM4 2 Fiber 50m Cable

QK737A

Internal Power Supplies

HPE X361 150W DC Power Supply

Rule #

Description

SKU

1, 2

HPE X361 150W 100-240VAC to 12VDC Power Supply

JD362B

Notes:

Includes 1 x c13, 150w

HPE X361 150W 100-240VAC to 12VDC Power Supply

JD362B

Notes:

C13 PDU Jumper Cord (NA/MEX/TW/JP)

HPE X361 150W 100-240VAC to 12VDC Power Supply

JD362B

Notes:

C13 PDU Jumper Cord (ROW)

HPE X361 150W 100-240VAC to 12VDC Power Supply

JD362B

Notes:

HPE 2.3m C13 to NEMA 6-15P Pwr Cord(J9936A)

HPE X361 150W 100-240VAC to 12VDC Power Supply

JD362B

Notes:

No Localized Power Cord Selected

Configuration Rules

Rule #

Description

1

If #B2E is selected Then replace Localized option with #B2E for power supply and with #B2E for switch . (Offered only in North America, Mexico, Taiwan, and Japan)

2

Localization (Wall Power Cord) required on orders without #B2B, #B2C (PDU Power Cord) . (See Localization Menu)REMARK: When Switches/Routers are Factory Racked, Then #B2B, or #B2C should be the Defaulted Power Cable option on the Switches/Routers.

Notes:

- Drop down under power supply should offer the following options and results:

o Switch/Router/Power Supply to PDU Power Cord - #B2B in North America, Mexico, Taiwan, and Japan or #B2C ROW. (OCA Default B2B or B2C for Rack Level CTO)

o Switch/Router/Power Supply to Wall Power Cord - Localized Option (OCA Default for BTO)

o High Volt Switch/Router/Power Supply to Wall Power Cord - #B2E Option. (Offered only in North America, Mexico, Taiwan, and Japan)

o No Localized Power Cord Selected - #AC3 Option

Switch Enclosure Options

Rack Mount Kits

Rule #

Description

SKU

HPE 5140 Rack Mount Kit

R8M91A

External/Redundant Power Supplies

Rule #

Description

SKU

2, 3, 5, 6

HPE Networking RPS 800 Redundant Power Supply

JD183A

Notes:

Height = 1U includes 1 x c13, 800w

2, 3, 5

HPE RPS1600 Redundant Power System

JG136A

Notes:

Height = 1U includes 1 x c13, 1600w and Power Supply port

1, 5

HPE RPS1600 1600W AC Power Supply

JG137A

Notes:

Installs into JG136A only

Configuration Rules

Rule #

Description

1

If this power supply is selected, The JG136A - HP A-RPS1600 Redundant Power System must be on order or onsite.

2

Localization required. (See Localization Menu for list.)

3

Only 1 JD183A or JG136A can be connected per switch.

5

Supported on JL827A and JL824A

6

Supported on JL826A only when connected to DC Power Supply JD366B with cable JD186A.

External/Redundant Power Cables

Rule #

Description

SKU

1

HPE X290 500 V 1m RPS Cable

JD186A

2

HPE X290 1000 A JD5 2m RPS Cable

JD187A

3

HPE X290 1000 A JD5 NonPoE 2m RPS Cable

JD188A

Configuration Rules

Rule #

Description

1

Supported on JL826A with JD366B to connect to JD183A.

2

Supported on JL829A, JL827A, JL823A, JL825A to connect to JG136A.

3

Supported on JG829A and JL826A to connect to JG136A.
