FRACTAL DESIGN skříň Define 7 Nano Black TG Light Tint, USB 3.1 Type-C, 2x USB 3.0, bez zdroje, mATX
Define 7 Nano
The Define 7 Nano re-defines precision, bringing clean design and a host of features from its larger siblings to a minimized form factor. The compact yet spacious interior can accommodate all Mini ITX and Mini-DTX motherboards, and the option to house a GPU up to 306 mm, making it highly versatile.
- Compact yet spacious interior accommodates any Mini ITX and Mini-DTX motherboard
- Room for GPU up to 306 mm with a 25 mm front fan
- Flexible storage option supporting one 3.5” drive and three 2.5’’ drives
TECHNICAL SPECIFICATIONS
| 3.5"/2.5" drive mounts | 1 (included) |
| Dedicated 2.5" drive mounts | 3 (2 included) |
| Expansion slots | 2 |

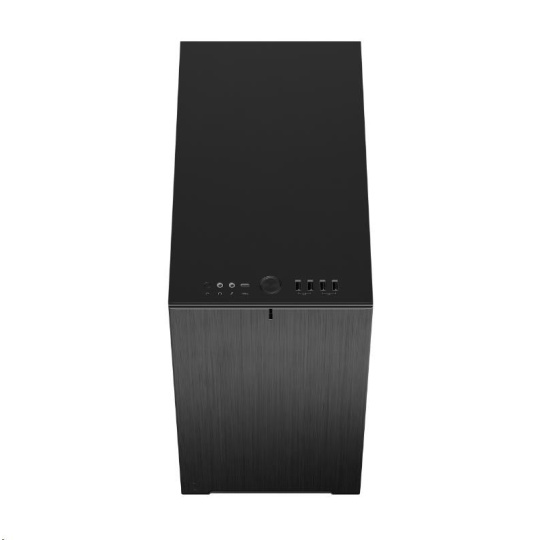

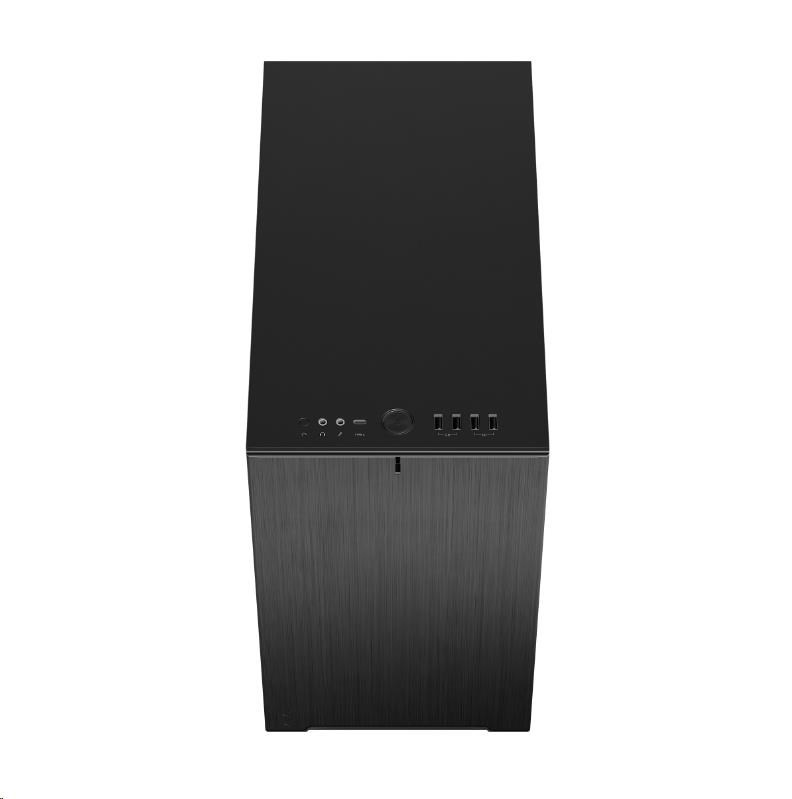

| Front interface | 1x USB 3.1 Gen 2 Type-C, 2x USB 3.0, 2x USB 2.0, Audio |
| Total fan mounts | 6x 120 mm or 3x 140 mm (top 140mm fan mount requires 15 mm slim fans) |
| Front fan | 2x 120/140 mm (1x Dynamic X2 GP-14 included) |
| Top fan | 2x 120 or 1x 140 slim fan (max 15 mm) |

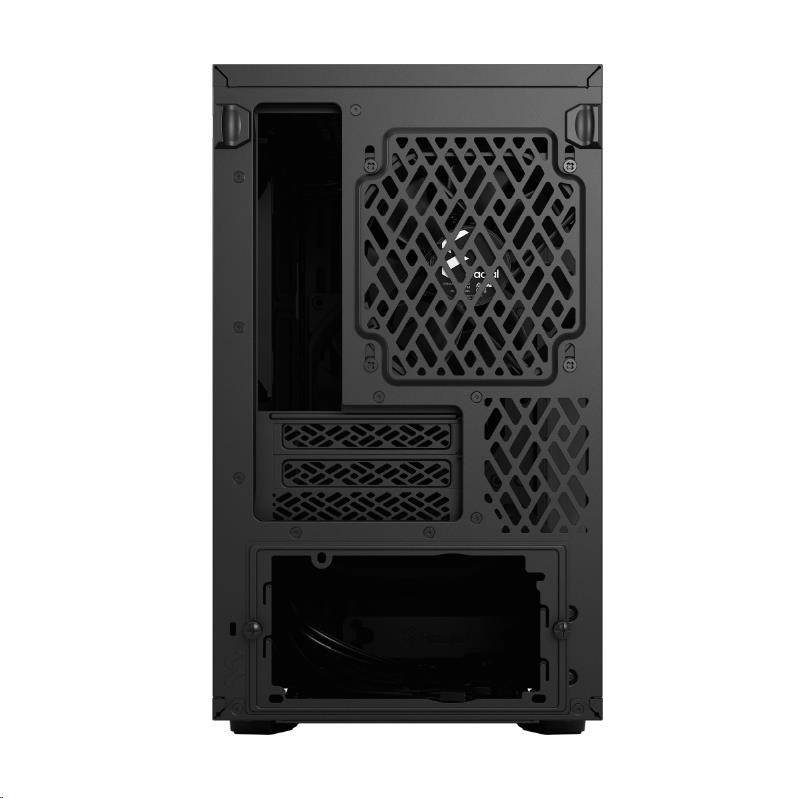

| Rear fan | 1x 120 mm (1x Dynamic X2 GP-12 included) |
| Bottom fan | 1x 120 mm (requires removal of HDD tray) |
| Dust filters | Top, Front, Bottom and PSU |

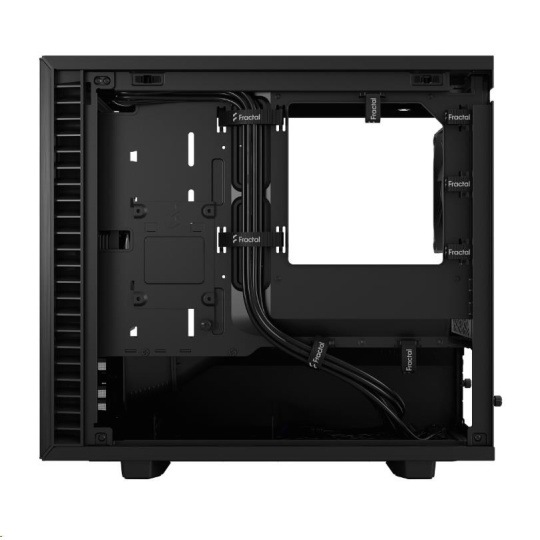

| Cable routing space | 15-25 mm |
| Cable routing grommets | Yes |
| Fixed cable ties | Yes |
| Tool-less push-to-lock | Both side panels |
| Captive thumbscrews | SSD and PSU brackets |

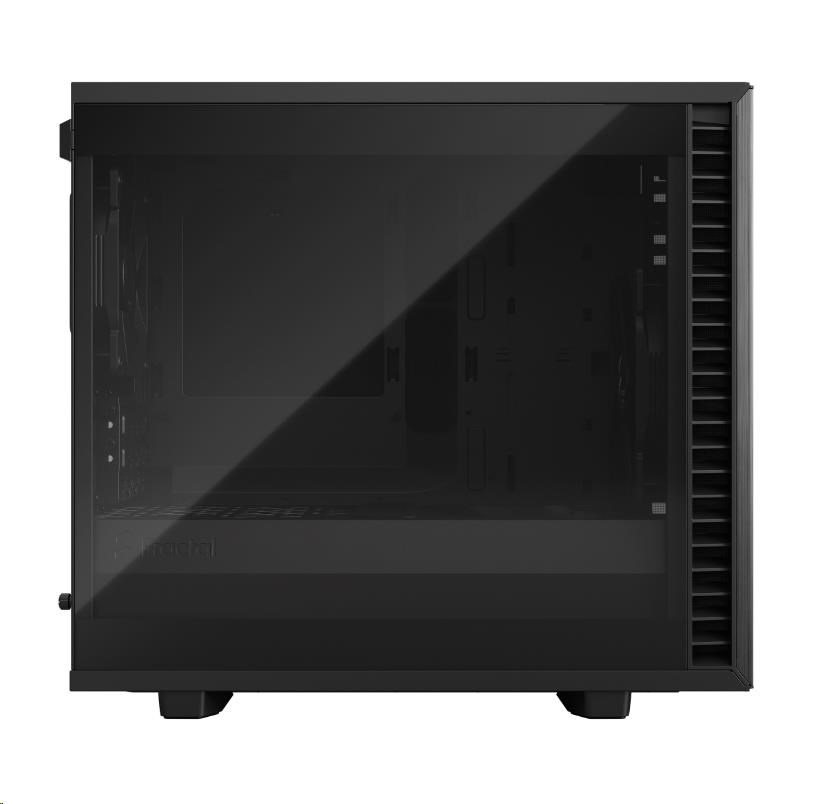

| Left side panel | Industrial sound-damped steel (Solid) or Tinted Glass panel (TG) |
| Right side panel | Industrial sound-damped steel |
| Compatibility | |
| Motherboard compatibility | Mini ITX / Mini-DTX |
| Power supply type | ATX |
| Front radiator | 120/240, 140/280 mm (316 mm max height, 146 mm max width, 280 mm recommended in “push” configuration for easier fit) |
| Top radiator | N/A |
| Raer radiator | 120 mm |
| Bottom radiator | N/A |
| PSU max length | 165 mm recommended (200 mm without HDD-tray and modular air duct) |
| GPU max length | 331 mm, 306 mm with front fan |
| GPU max thickness | 57 mm / 2.8 slot |
| CPU cooler max height | 167 mm |
| Dimensions | |
| Case dimensions (L x W x H) | 399 x 205 x 361 mm |
| Case dimensions w/o feet/protrusions/screws | 390 x 205 x 345 mm |
| Net weight | 7.1kg (TG) / 7.2kg (solid) |
| Package dimensions (L x W x H) | 417 x 277 x 471 mm |
| Gross weight | 8.5kg (TG) / 8.6 (solid) |
.
ParametrePridať do porovnania
Provedení skříně
Mini ITX
Počet pozic 3.5" (HDD)
1
Počet pozic 2.5" (SSD)
3
Vybavení PC skříně
Přední Audio panel
Bočnice
Prosklená
