Cooler Master case Elite 300, mini-ITX, bez zdroje, černá
Elite 300
Compact size, full-fledged performance.
High in value and attention to detail, Cooler Master’s Elite 300 offers users a cost effective, space conscious solution to gaming and computing needs. To keep up with the needs of increasingly power hungry computing hardware, Elite 300 features a large intake grill to ensure a smooth, and efficient running system. Tempered glass side panel and steel side panel variations are available to match the needs and preferences of each user. The fully black coating and included PSU cover allows for clean builds that are visually appealing as well as functional.

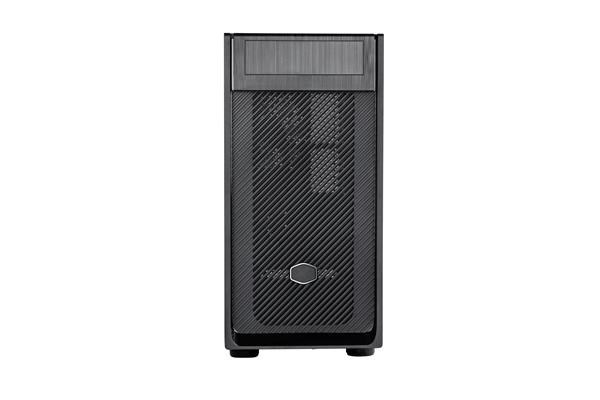

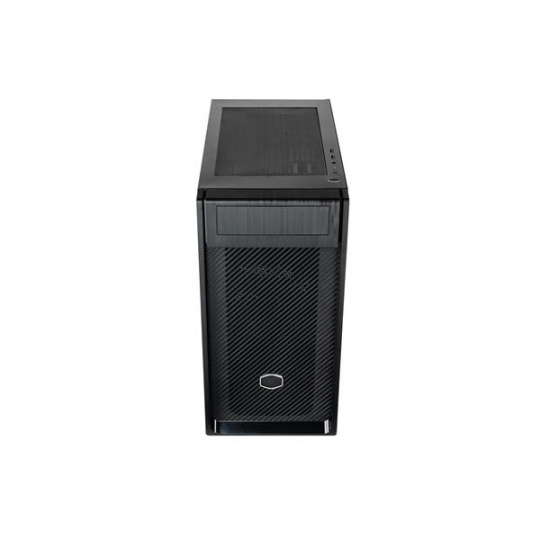

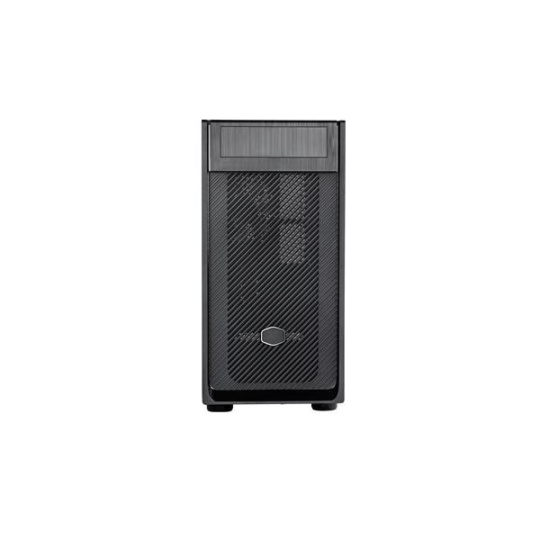

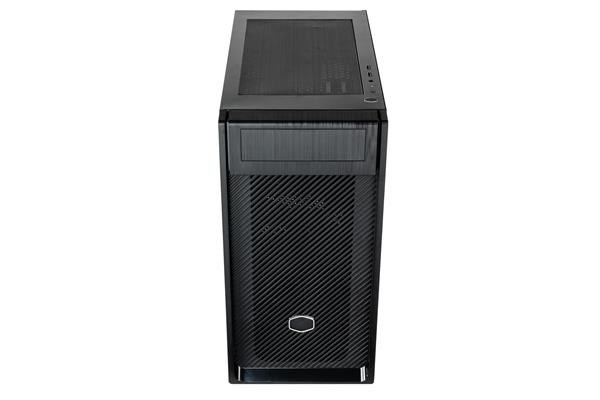

- Large Filtered Intakes – The front panel is constructed with a substantially large, unrestricted intake grill to ensure that the system runs cool and efficiently.

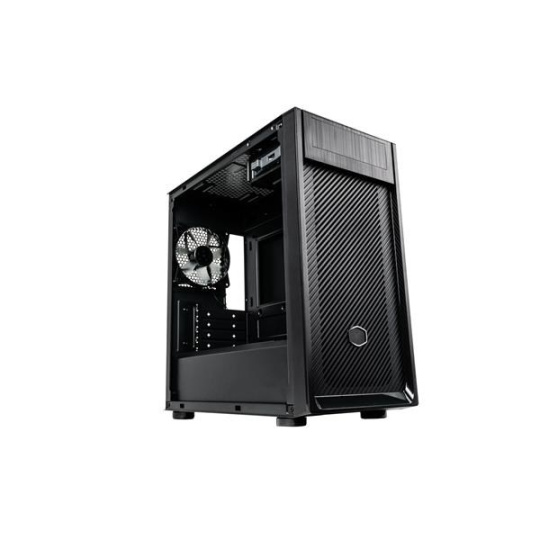

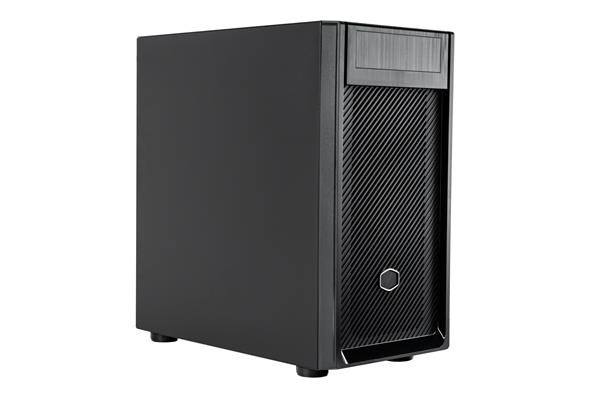

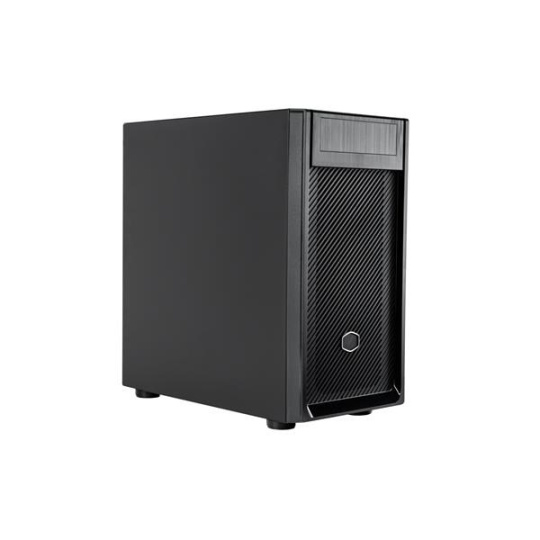

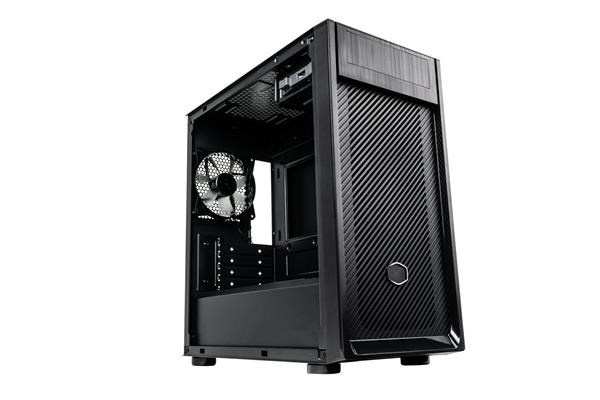

- Tempered Glass And Steel Side Panel Versions – Elite 300 offers two side panel versions for users’ selection. Users may choose between seamless tempered glass or stealthy steel according to personal taste and preferences.
- Versatile Cooling Options – Supports up to five fans as well as front or top mounted radiators to ensure that performance is not compromised.
- Full Black Coating & PSU Cover - Let your system stand out with an all-black background and a PSU cover to hide cables.

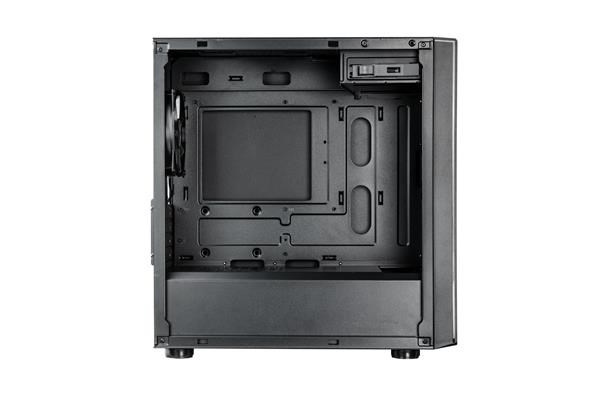

- Large Support, Minimized Footprint– Despite its compact size, Elite 300 supports up to 345mm graphics cards, 161mm CPU coolers, and multiple fans/radiators locations to stay ahead of the game.

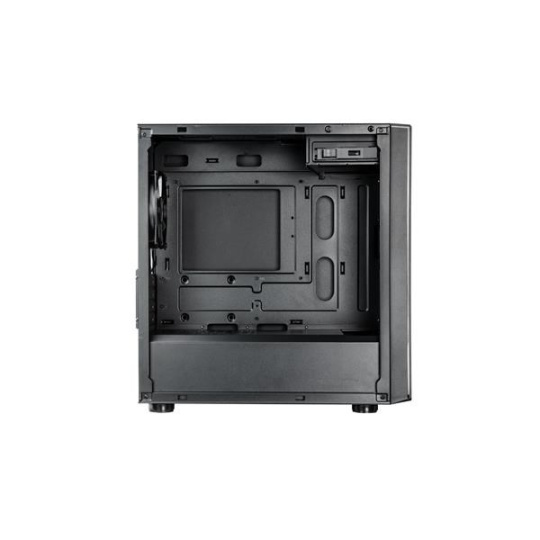

- Removable HDD Cage – The removable, modular frame allows builders to toollessly install hard drives for greater freedom in building and increased compatibility for long power supplies.
- Breathable Power Supply Shroud – The PSU cover is ventilated on top of the power supply location, allowing actively cooled units to be installed in multiple orientations, while maintaining support for passively cooled power supplies.
TECHNICAL SPECIFICATIONS
Product Number | E300-KN5N-S00 |
Exterior Color | Black |
Material | Exterior: Steel, Plastic Left Side Panel:Steel |
Dimensions (L x W x H) | Body size: 370 x 203.5 x 410mm Incl. Protrusions: 413.5 x 203.5 x 425mm |
Volume (Liters Excl. Protrusions) | 35.76 L |
Motherboard Support | Mini-ITX, Micro-ATX |
Expansion Slots | 4 |
Drive Bays | 5.25“ ODD: 1 3.5” / 2.5” Combo: 2 2.5” SSD: 2 |
I/O Panel | USB Ports: 2 x USB 3.2 Gen 1 Type A Audio In / Out: 1 x 3.5mm Headset Jack (Audio + Mic) |
Pre-installed Fan(s) | Top: N/A Front: N/A Rear: 1 x 120mm Black fan |
Fan Support | Top: 1 x 120mm / 1 x 140mm / 2 x 120mm* / 2 x 140mm* (*Remove ODD bracket) Front: 2 x 120mm Rear: 1 x 120mm |
Radiator Support | Top: 120 / 140 / 240* / 280mm*(*Remove ODD bracket) Front: 120 / 240mm Rear: 120mm |
Clearances | CPU Cooler: 163.5mm / 6.43”(TG), 165.5mm / 6.51”(Steel) Power Supply: 160mm / 6.29” Graphics Card: 365mm / 14.37”(w/o front fans & radiator) |

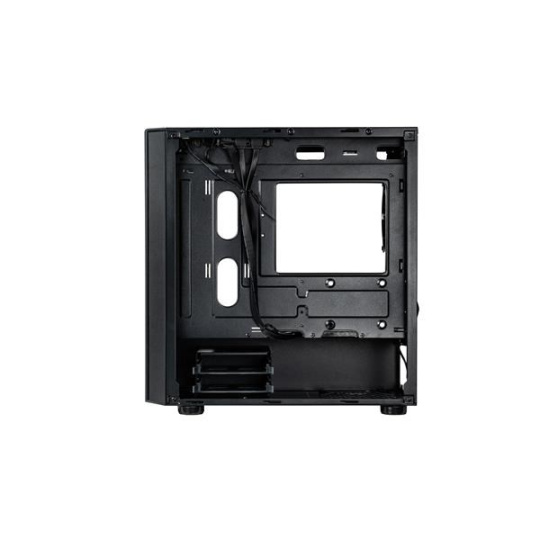

Cable Routing | Behind MB Tray: 18.5mm / 0.73” |
Dust Filters | Front, Top, Bottom |
Power Supply Support | Bottom Mount, ATX |
Warranty | 2 Years |
.
ParametrePridať do porovnania
Provedení skříně
Mini ITX
Počet pozic 5.25"
1
Počet pozic 3.5" (HDD)
2
Počet pozic 2.5" (SSD)
2
Vybavení PC skříně
Bez integrovaného zdroje
Vybavení PC skříně
Přední Audio panel
Vybavení PC skříně
Přední USB panel
