ASUS MB Sc LGA1700 TUF GAMING B760M-PLUS D4, Intel B760, 4xDDR4, 1xDP, 1xHDMI, mATX

Name: ASUS MB Sc LGA1700 TUF GAMING B760M-PLUS D4, Intel B760, 4xDDR4, 1xDP, 1xHDMI, mATX
Brand: Asus
SKU: 431944
Price: 151.86 EUR
Availability: OutOfStock

--0%

Kód: 431944

Kód dod.: 90MB1DI0-M0EAY0

EAN: 4711387005316

Záruka: 36 Měsíc(ů)

Výrobca: Asus

Pridať do obľúbených Pridať do porovnania Otázka pre predajcu Stráženie produktu

Popis a parametre

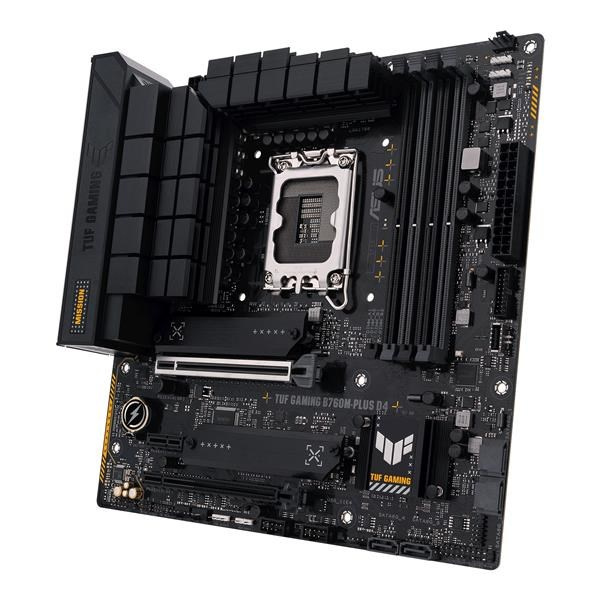

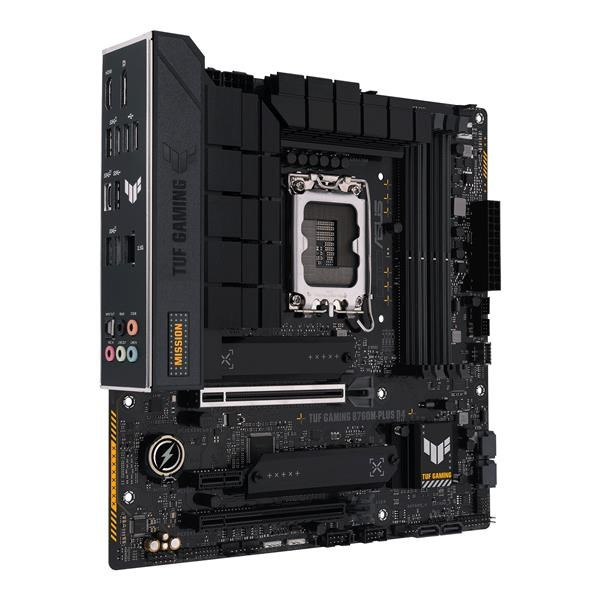

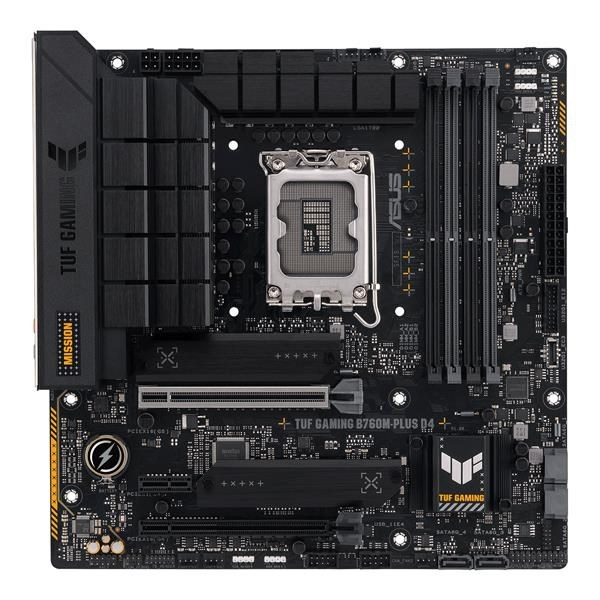

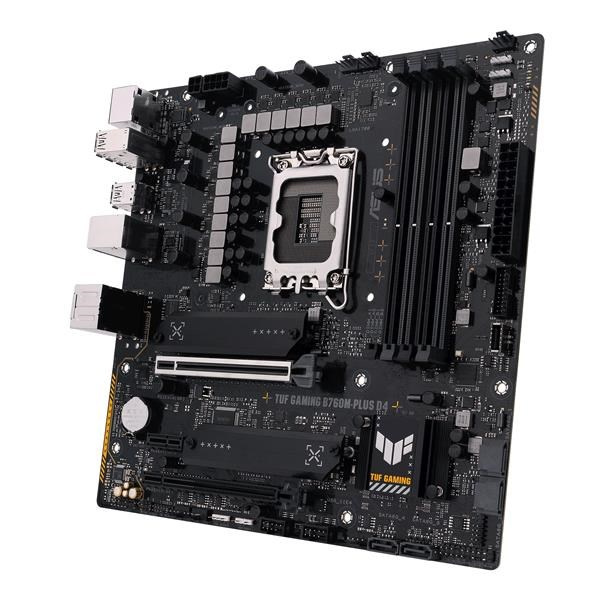

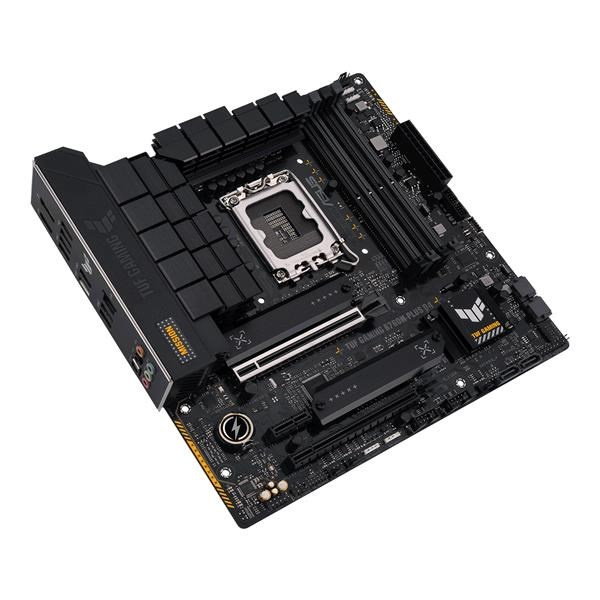

ASUS MB Sc LGA1700 TUF GAMING B760M-PLUS D4, Intel B760, 4xDDR4, 1xDP, 1xHDMI, mATX

TUF GAMING B760M-PLUS D4

TECHNICAL SPECIFICATIONS

CPU	Intel® Socket LGA1700 for 13th Gen Intel® Core™ & 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors*
	Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
	* Refer to www.asus.com for CPU support list.
	** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
Chipset	Intel® B760 Chipset
Memory	4 x DIMM, Max. 128GB, DDR4 5333(OC)/ 5066(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory*
	Dual Channel Memory Architecture
	Supports Intel^® Extreme Memory Profile (XMP)
	OptiMem II
	* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support under the Support tab or visit https://www.asus.com/support/
Graphics	1 x DisplayPort**
	1 x HDMI® port***
	*Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
	** Supports max. 4K@60Hz as specified in DisplayPort 1.4.
	***Supports 4K@60Hz as specified in HDMI 2.1.
Expansion Slots	Intel® 13^th & 12^th Gen Processors
	1 x PCIe 5.0 x16 slot
	Intel® B760 Chipset
	1 x PCIe 4.0 x16 slot (supports x4 mode)
	1 x PCIe 4.0 x1 slot
	- To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.
Storage	Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports*
	Intel® 13^th & 12^th Gen Processors
	M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
	Intel® B760 Chipset
	M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
	4 x SATA 6Gb/s ports
	* Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10.
Ethernet	1 x Realtek 2.5Gb Ethernet
Ethernet	TUF LANGuard
USB	Rear USB (Total 8 ports)
	1 x USB 3.2 Gen 2x2 port (1 x USB Type-C^®)
	4 x USB 3.2 Gen 2 ports (4 x Type-A)
	1 x USB 3.2 Gen 1 port (1 x Type-A)
	2 x USB 2.0 ports (2 x Type-A)
	Front USB (Total 7 ports)
	1 x USB 3.2 Gen 1 connector (supports USB Type-C^®)*
	1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
	2 x USB 2.0 headers support additional 4 USB 2.0 ports *
	* USB_E4 and USB_EC3 can only be enabled/disabled simultaneously.
Audio	Realtek 7.1 Surround Sound High Definition Audio CODEC - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback
	Audio Features
	- Audio Shielding
	- Rear optical S/PDIF out port
	- Premium audio capacitors
	- Dedicated audio PCB layers

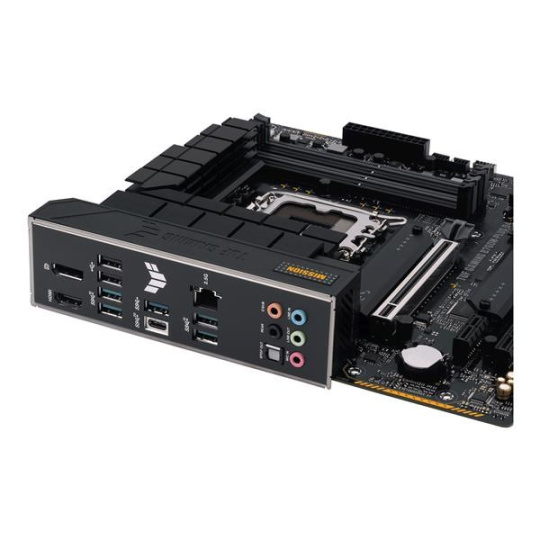

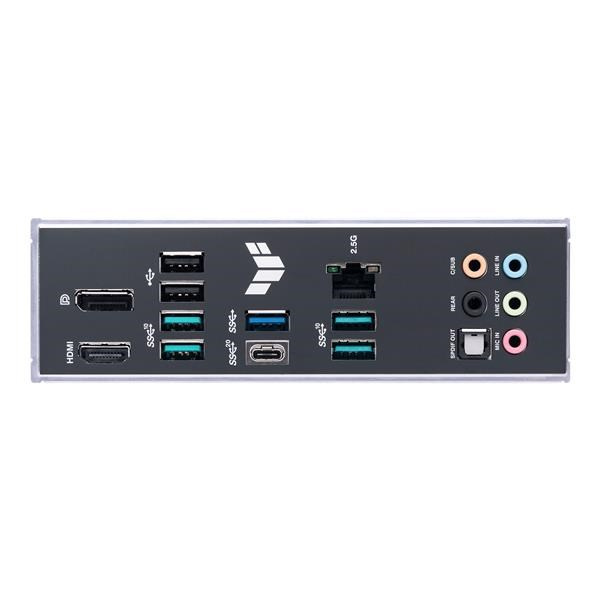

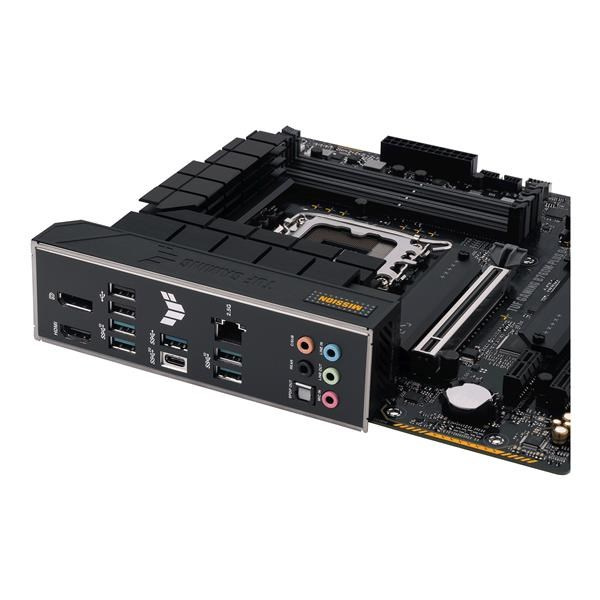

Back Panel I/O Ports	1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)
	4 x USB 3.2 Gen 2 ports (4 x Type-A)
	1 x USB 3.2 Gen 1 port (1 x Type-A)
	2 x USB 2.0 ports (2 x Type-A)
	1 x DisplayPort
	1 x HDMI^® port
	1 x Wi-Fi Module
	1 x Realtek 2.5Gb Ethernet port
	5 x Audio jacks
	1 x Optical S/PDIF out port
Internal I/O Connectors	Fan and Cooling related
	1 x 4-pin CPU Fan header
	1 x 4-pin CPU OPT Fan header
	1 x 4-pin AIO Pump header
	3 x 4-pin Chassis Fan headers
	Power related
	1 x 24-pin Main Power connector
	1 x 8-pin +12V Power connector
	1 x 4-pin +12V Power connector
	Storage related
	2 x M.2 slots (Key M)
	4 x SATA 6Gb/s ports
	USB
	1 x USB 3.2 Gen 1 connector (supports USB Type-C^®)
	1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
	2 x USB 2.0 headers support additional 4 USB 2.0 ports
	Miscellaneous
	3 x Addressable Gen 2 headers
	1 x AURA RGB header
	1 x Clear CMOS header
	1 x Front Panel Audio header (AAFP)
	1 x 20-3 pin System Panel header with Chassis intrude function
	1 x Thunderbolt™ (USB4®) header
Special Features	ASUS TUF PROTECTION
	- DIGI+ VRM (- Digital power design with DrMOS)
	- ESD Guards
	- TUF LANGuard
	- Overvoltage Protection
	- SafeSlot Core+
	- Stainless-Steel Back I/O
	ASUS Q-Design
	- M.2 Q-Latch
	- Q-DIMM
	- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
	- Q-Slot
	ASUS Thermal Solution
	- M.2 heatsink
	- VRM heatsink design
	ASUS EZ DIY
	- CPU Socket lever protector
	- ProCool
	- Pre-mounted I/O shield
	- SafeDIMM
	AURA Sync
	- AURA RGB header
	- Addressable Gen 2 headers
Software Features	ASUS Exclusive Software
	Armoury Crate
	- AURA Creator
	- AURA Sync
	- Fan Xpert 2+
	- Power Saving
	- Two-Way AI Noise Cancelation
	AI Suite 3
	DIGI+ VRM
	- PC Cleaner
	TUF GAMING CPU-Z
	DTS Audio Processing
	Norton 360 for Gamers
	WinRAR
	UEFI BIOS
	ASUS EZ DIY
	- ASUS CrashFree BIOS 3
	- ASUS EZ Flash 3
	- ASUS UEFI BIOS EZ Mode
BIOS	128 Mb Flash ROM, UEFI AMI BIOS
Manageability	WOL by PME, PXE

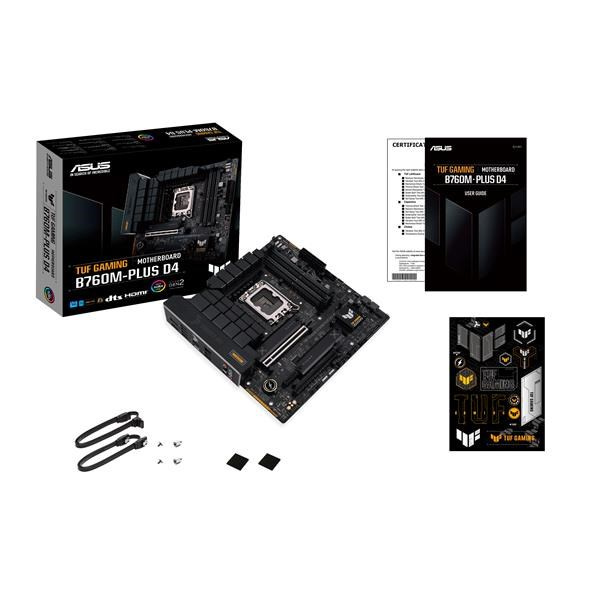

Accessories	Cables
	2 x SATA 6Gb/s cables
	Miscellaneous
	1 x M.2 Rubber Package
	1 x M.2 SSD screw package
	1 x TUF Gaming sticker
	Documentation
	1 x TUF Certification card
	1 x User guide
Operating System	Windows® 11, Windows® 10 64-bit
Form Factor	mATX Form Factor
Form Factor	9.6inch x 9.6 inch ( 24.4 cm x 24.4 cm )

ParametrePridať do porovnania

Technologie paměti RAM

DDR4

Socket (patice)

Socket 1700

Formát základní desky

micro ATX

Chipset

Intel B760

3.5mm Jack

Ano

Pro procesory

Intel

Počet paměťových slotů

DisplayPort

M.2 slot

SATA 3

VGA

DVI

HDMI

PCI Express x1

DisplayPort Type-C
